2012 Mazda CX-7 FWD L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE

Body Control Module: Service and Repair

BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION

NOTE:
- Perform the theft-deterrent system initialization when the BCM is replaced with a new one.

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (LH) Front Scuff Plate Removal/Installation

b. Front side trim (LH) Front Side Trim Removal/Installation

c. Console panel Console Panel Removal/Installation

d. Console Console Removal/Installation

3. Set the hood release lever out of the way. Service and Repair

4. Remove the lower panel. Lower Panel Removal/Installation

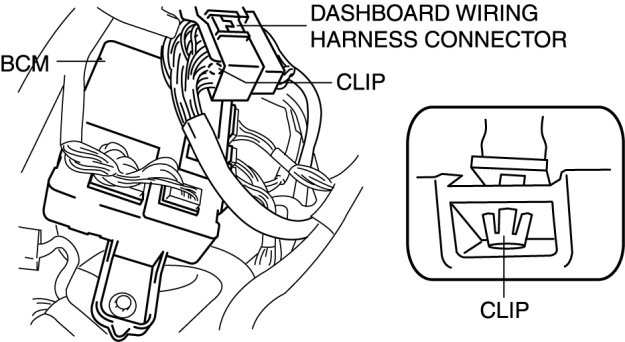

5. Remove the dashboard wiring harness connector clip from the BCM.

Factory service manual diagram

6. Disconnect the connectors shown in the figure.

Factory service manual diagram

7. Remove the bolts shown in the figure.

Factory service manual diagram

8. Raise the BCM in the direction of the arrow (1) shown in the figure, pull it in the direction of the arrow (2), and remove the tab from the body.

Factory service manual diagram

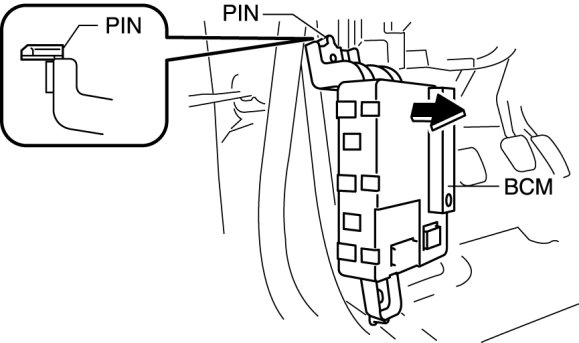

9. Pull the BCM outward and remove the pin from the body.

Factory service manual diagram

10. Remove the BCM.

11. Install in the reverse order of removal.
