2012 Mazda 6 s Touring PlusFACTORY OEM SERVICE PROCEDURE
Windshield Removal: Notes
- Disconnect the negative battery cable.
- Remove the following parts:
- Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
- Rain sensor (vehicles with rain sensor) (See RAIN SENSOR REMOVAL/INSTALLATION .)
- Auto-dimming mirror (vehicles with auto-dimming mirror) (See AUTO-DIMMING MIRROR REMOVAL .)
- Rear view mirror (vehicles without auto-dimming mirror) (See REARVIEW MIRROR REMOVAL .)
- A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
- Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
- Set the headliner out of the way.

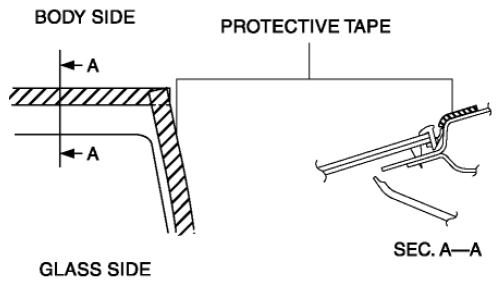

- Apply protective tape along the edge of the body.
