2012 Mazda 6 s Touring PlusFACTORY OEM SERVICE PROCEDURE
Auto-open/close function
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the power window motor connector.

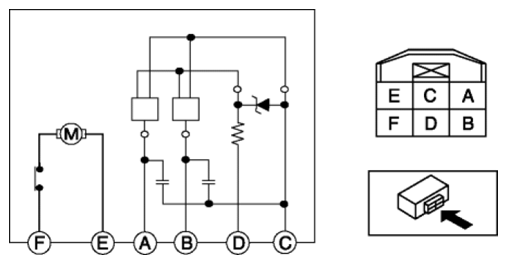

- Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.
- If the power window motor does not operate as indicated in the table, replace it. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
Operation Terminal F E Close Ground B+ Open B+ Ground - Connect the battery positive voltage to power window motor terminal D and connect terminal C to ground.
- Operate the power window motor and measure the voltage at terminals A and B.
- If there is any malfunction, replace the power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
Voltage
- Pulse: max. 5 V/min. 0 V
