2012 Mazda 6 i Touring PlusFACTORY OEM SERVICE PROCEDURE

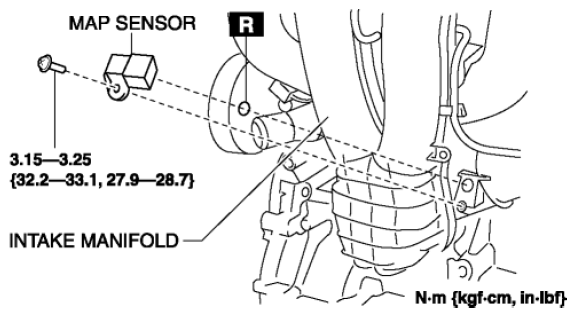

Manifold Absolute Pressure (Map) Sensor Removal/Installation
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Disconnect the MAP sensor connector.
- Remove the MAP sensor.
- Install in the reverse order of removal.
