2012 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Power Window Subswitch Inspection
POWER WINDOW SUBSWITCH INSPECTION
Passenger-side
With auto-open/close function
1. Disconnect the negative battery cable.
2. Remove the inner garnish. Inner Garnish Removal/Installation
3. Remove the front door trim. Front Door Trim Removal/Installation
4. Connect the negative battery cable.
5. Measure the voltage at each terminal.
- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item(s)" and related wiring harnesses.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch. Power Window Subswitch Removal/Installation
Without auto-open/close function
1. Disconnect the negative battery cable.
2. Remove the inner garnish. Inner Garnish Removal/Installation
3. Remove the front door trim. Front Door Trim Removal/Installation

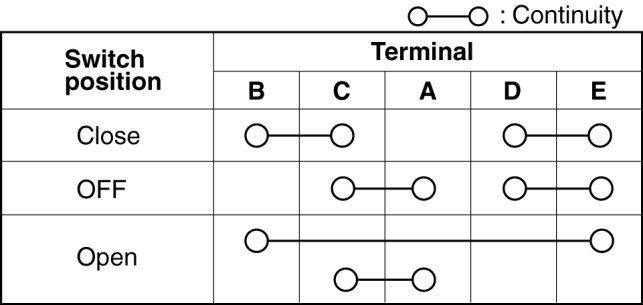

4. Verify that the continuity is as indicated in the table using a tester.
- If not as indicated in the table, replace the power window subswitch. Power Window Subswitch Removal/Installation
Rear
1. Disconnect the negative battery cable.
2. Remove the rear door trim. Rear Door Trim Removal/Installation
3. Verify that the continuity is as indicated in the table using a tester.
- If not as indicated in the table, replace the power window subswitch. Power Window Subswitch Removal/Installation
