2012 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Timing Cover
Engine Front Cover

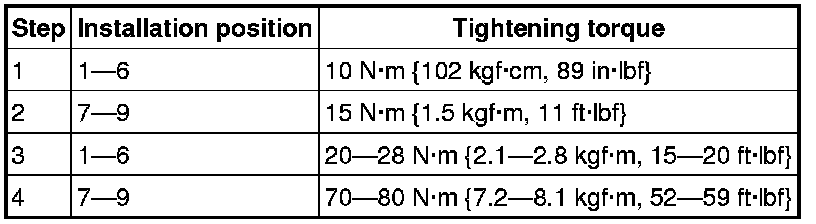

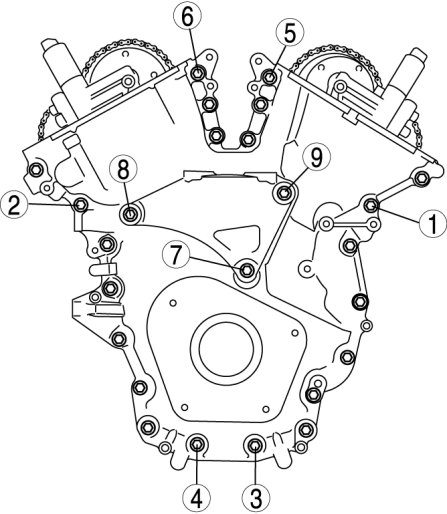

Tighten the engine front cover and No.3 engine mount bracket bolts in 4 steps in the order shown in the figure.
Tightening torque
Tighten the engine front cover bolts in the order in 2 steps in the order shown in the figure.
Tightening torque
Tighten to 10 Nm {102 kgf-cm, 89 in-lbf}.
Tighten to 20-28 Nm {2.1-2.8 kgf-m, 15-20 ft-lbf}.
Tighten the engine front cover and No.3 engine mount bracket bolts in 4 steps in the order shown in the figure.
Tightening torque
Tighten the engine front cover bolts in the order in 2 steps in the order shown in the figure.
Tightening torque
Tighten to 10 Nm {102 kgf-cm, 89 in-lbf}.
Tighten to 20-28 Nm {2.1-2.8 kgf-m, 15-20 ft-lbf}.
