2012 Mazda 6 V6-3.7L
Intake Manifold
2012 Mazda 6 V6-3.7LSECTION Intake Manifold
Intake Manifold

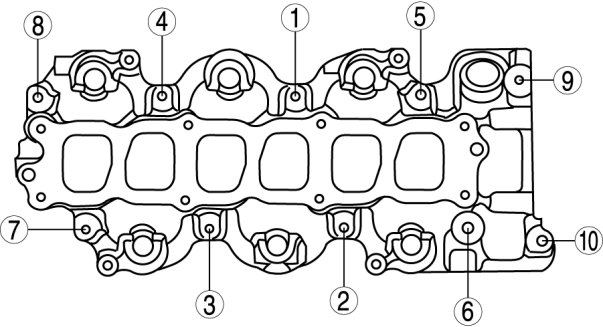

Tighten the intake manifold installation bolts in the order shown.
Intake manifold installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
Dynamic Chamber
Tighten the dynamic chamber installation bolts in the order shown.
Dynamic chamber installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
Tighten the intake manifold installation bolts in the order shown.
Intake manifold installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
Dynamic Chamber
Tighten the dynamic chamber installation bolts in the order shown.
Dynamic chamber installation bolt tightening torque 9-11 Nm {92-112 kgf-cm, 80-97 in-lbf}
