2012 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZI 3.7 V6]
NOTE:
- Disconnect the connector after the CKP sensor is removed to prevent the CKP sensor from falling off.
- The bolt and sensor are integrated and cannot be pulled out.
- When removing the CKP sensor, be careful not to drop the tool.

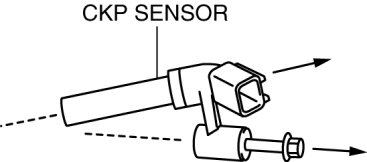

- The bolt and sensor must be pulled in different directions. Pull them as indicated in the figure.
1. Disconnect the negative battery cable. Removal and Replacement
2. Remove the catalytic converter (WU-TWC) (LH) for easier access. Service and Repair

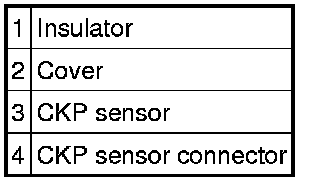

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
