2012 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Relay Box: Service and Repair
RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
1. Disconnect the negative battery cable.
2. Remove the lower panel. Lower Panel Removal/Installation
3. Remove the knee bolster. Knee Bolster Removal/Installation
4. Remove the wiring harness clip.
5. Remove the clips.

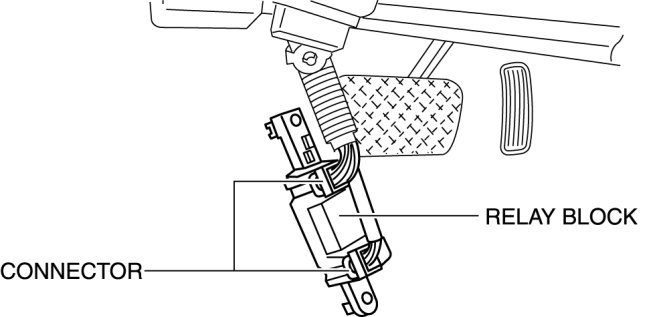

6. Remove the relay block.
7. Disconnect the connectors.
8. Install in the reverse order of removal.
