2012 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Keyless Entry System (Without Advanced Keyless Entry And Push Button Start System) (Includes TPMS Information)

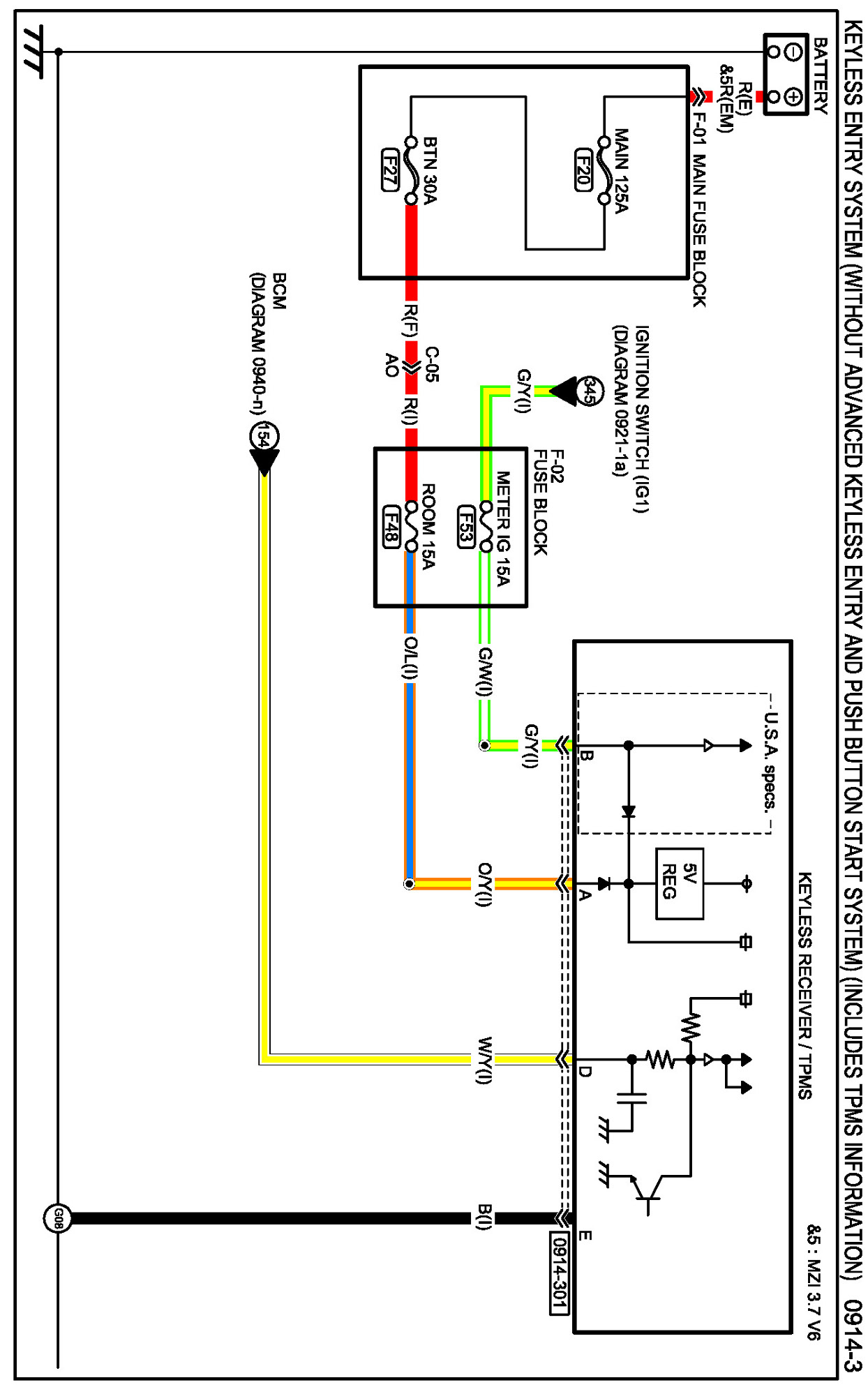

Diagram 0914-3:
Connectors 0914-3:

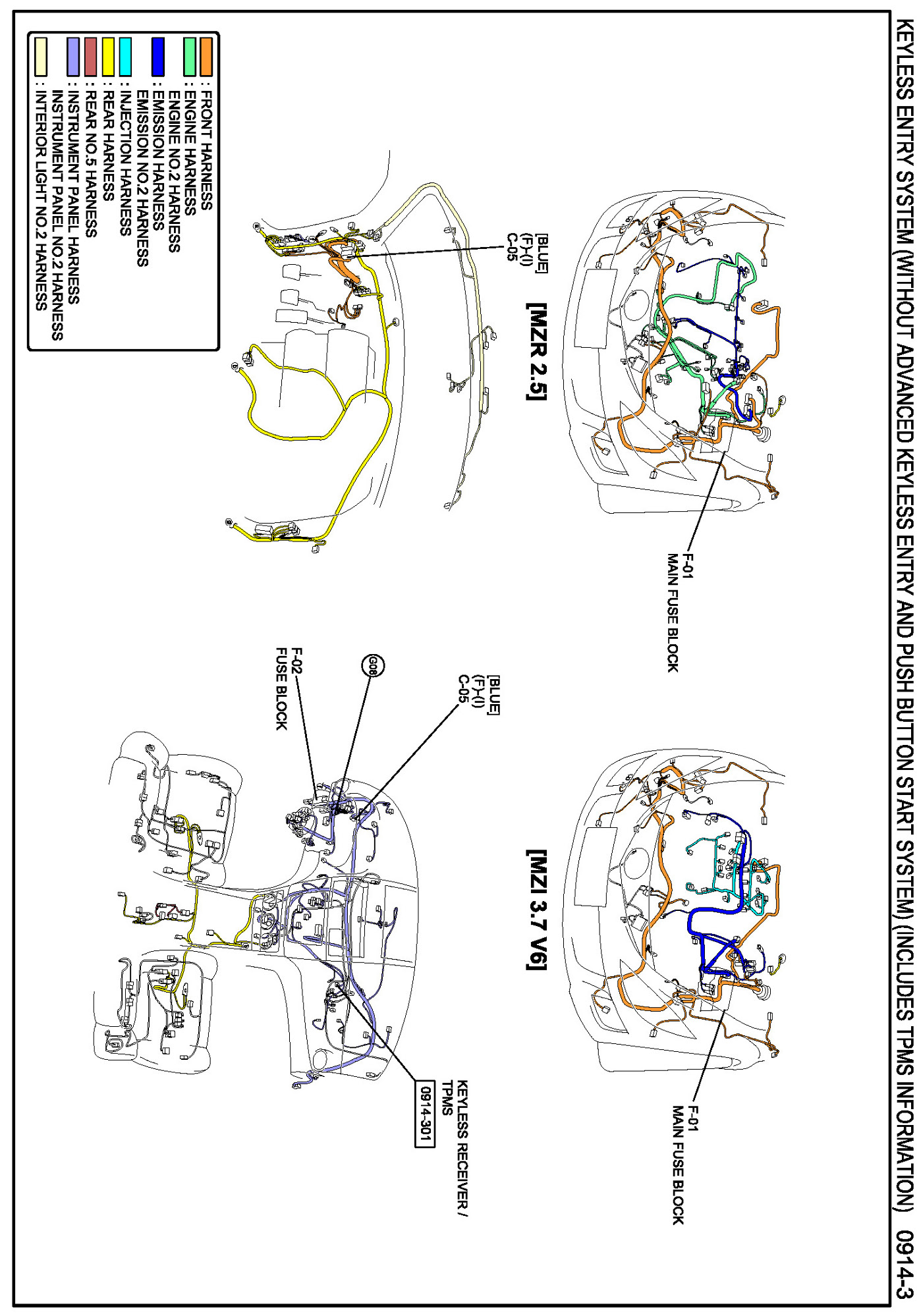

Routing View 0914-3:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
