2012 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Buckle Switch Inspection
- Switch the ignition to off.
- Disconnect the negative battery cable.
- Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
- Remove the front buckle. (See FRONT BUCKLE REMOVAL/INSTALLATION .)

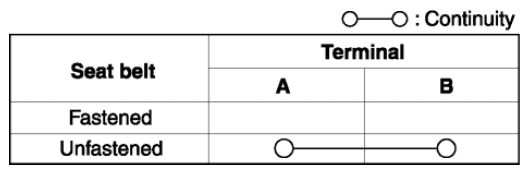

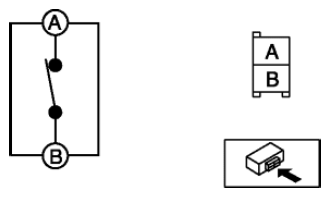

- Inspect for continuity between the buckle switch terminals using a tester.
- If not as indicated in the table, replace the front buckle.
