2012 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE
Neutral Switch Inspection
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect the neutral switch connector. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)

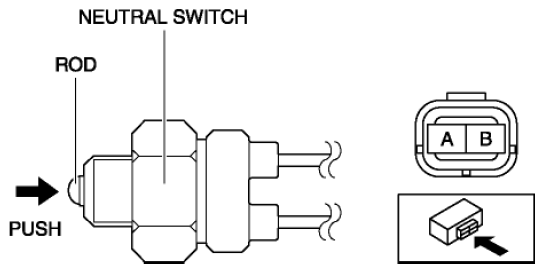

- Inspect for continuity between neutral switch terminals A and B.
- If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
NEUTRAL SWITCH SPECIFICATIONMeasured condition Continuity Rod pushed Continuity detected Except above No continuity
