2012 Mazda 5 TouringFACTORY OEM SERVICE PROCEDURE

Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Detach the tab A shown in the figure.

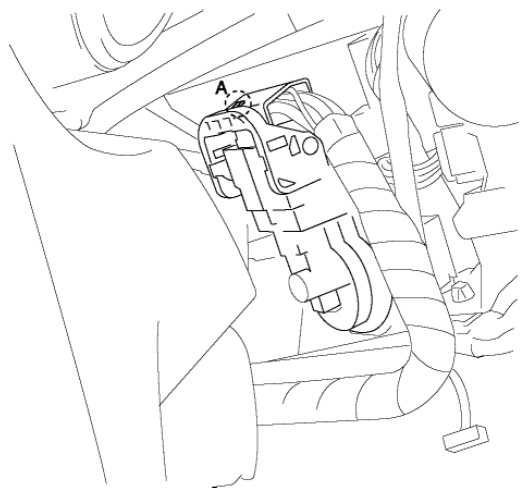

    Fig 1: Identifying Ignition Switch Tab A
    G08153496
  4. Remove the ignition switch connector.

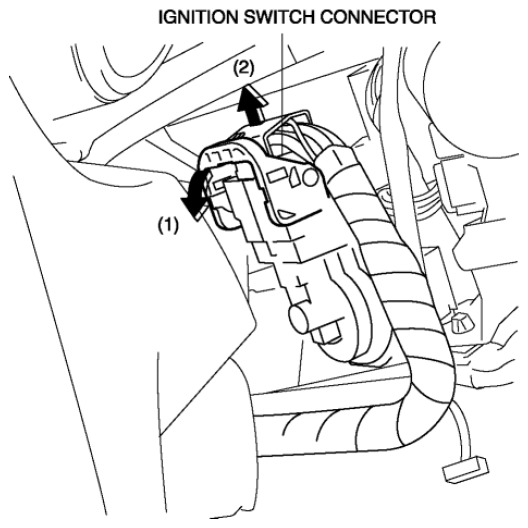

    Fig 2: Identifying Lock Lever Pulling Direction And Ignition Switch Connector
    G08153497
    1. Pull the lock lever in the direction of the arrow shown in the figure and release the lock.
    2. Disconnect the ignition switch connector.
  5. Remove the ignition switch.

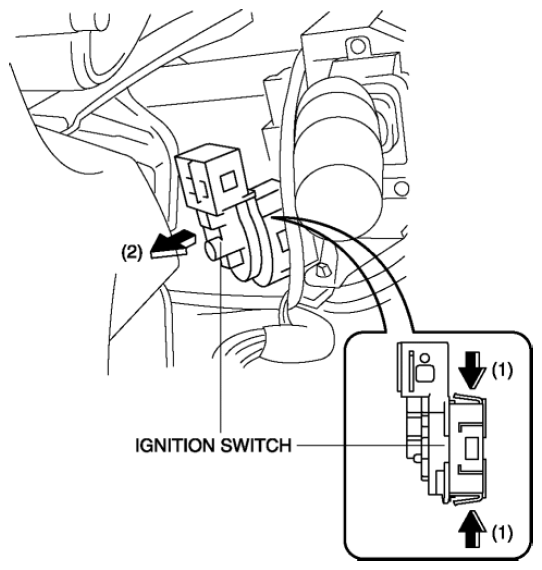

    Fig 3: Identifying Ignition Switch And Tab
    G08153498
    1. Push the tab shown in the figure.
    2. Remove the ignition switch.
  6. Install in the reverse order of removal.
