2012 Mazda 5 L4-2.5LFACTORY OEM SERVICE PROCEDURE
Window Glass: Service and Repair

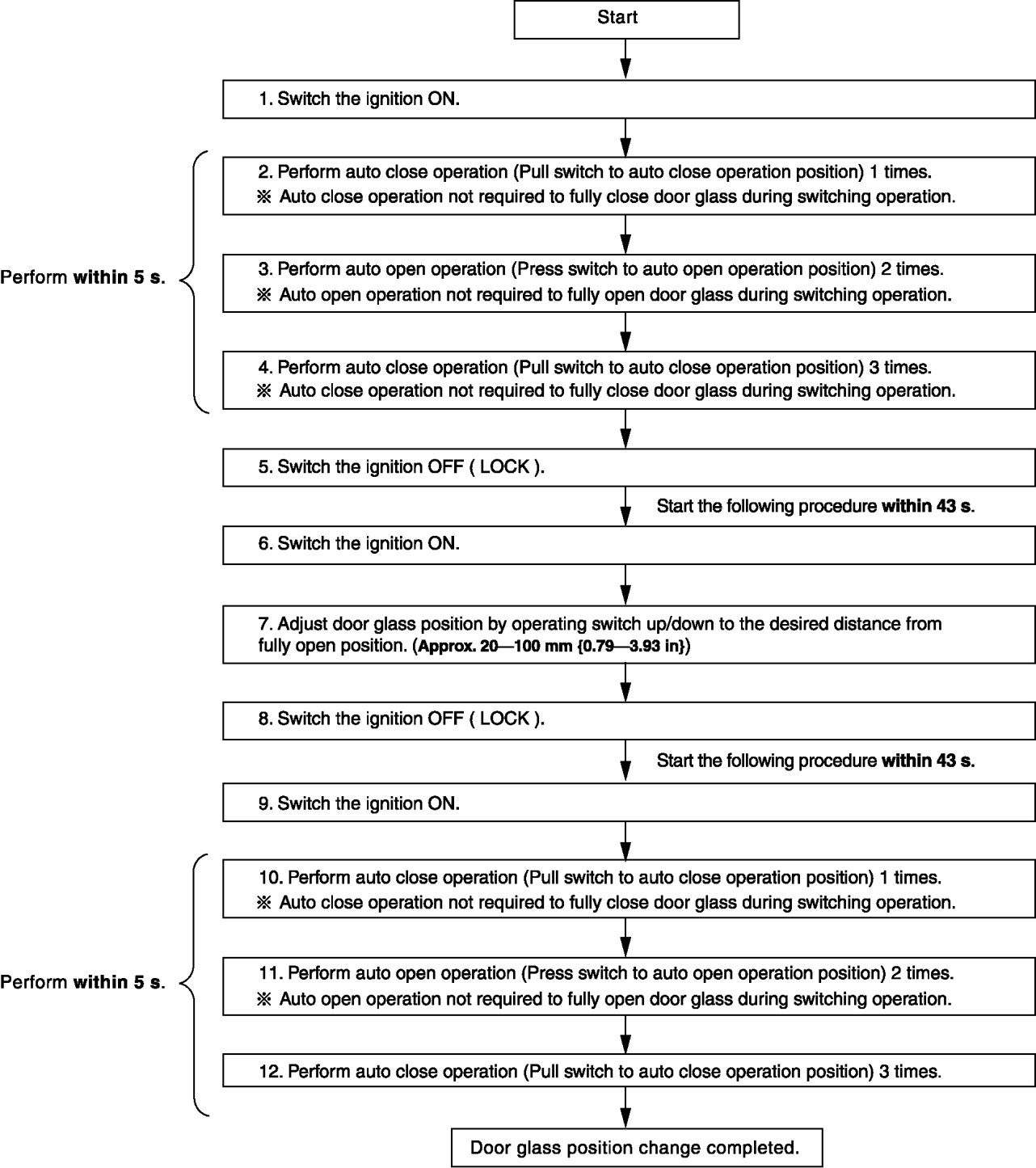

DOOR GLASS POSITION CHANGE PROCEDURE
NOTE:
- After performing the following work, verify that the two-step down function operates correctly and the available distance is changed. If the two-step down function does not operate or the available distance is not changed, the procedure was not performed correctly. Perform the procedure from the beginning again.
- The adjustment range of the door glass position is approx. 20-100 mm {0.79-3.93 in}.
- When the door glass lowers 20 mm {0.79 in} or less, the available distance is approx. 20 mm {0.79 in}. When the glass exceeds 100 mm {3.94 in}, the distance is approx. 100 mm {3.94 in}.
