Control Module: Testing and Inspection

TCM INSPECTION [FS5A-EL]

CAUTION:
- Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.

NOTE:
- The TCM terminal voltage can vary depending on conditions when measuring, and deterioration over time of the vehicle which may cause false diagnosis. Therefore, a comprehensive diagnosis must be performed to determine whether the malfunction is occurring in the input system, output system, or the TCM.

1. Connect the negative (-) lead of the tester to the GND.

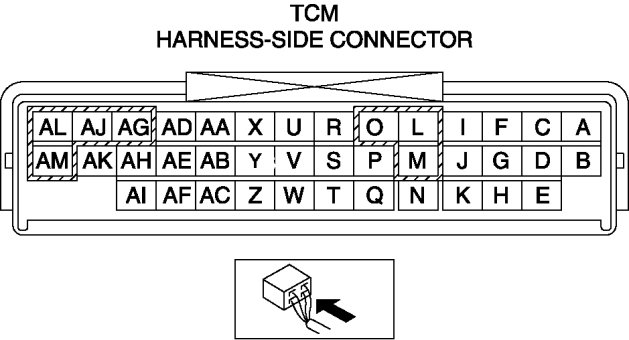

2. Measure each terminal voltage of the TCM using a tester.

- If output voltage is abnormal even though input voltage is normal, inspect the related system. If the related system is normal, replace the TCM. Service and Repair

TCM Voltage (Reference)



















Inspection Using an Oscilloscope (Reference)

Input/turbine speed sensor





- Terminal:
AB (+)-Y (-)
- Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), DC range
- Measurement condition:
Idling in P position after warming up

VSS





- Terminal:
Z (+)-GND (-)
- Oscilloscope setting:
1 V/DIV (Y), 2 ms/DIV (X), DC range
- Measurement condition:
When all of the following conditions are met:

- Vehicle speed: 30 km/h {19 mph}
- 3GR

Intermediate sensor





- Terminal:
AC (+)-GND (-)
- Oscilloscope setting:
1 V/DIV (Y), 200 microsecond/DIV (X), DC range
- Measurement condition:
When all of the following conditions are met:

- Vehicle speed: 30 km/h {19 mph}
- 3GR

Pressure control solenoid A (+)





- Terminal:
AD (+)-GND (-)
- Oscilloscope setting:
5 V/DIV (Y), 1 ms/DIV (X), DC range
- Measurement condition:
When all of the following conditions are met:

- Ignition switched ON (engine off)
- P position
- Accelerator pedal fully depressed

Pressure control solenoid A (-)





- Terminal:
AE (+)-GND (-)
- Oscilloscope setting:
200 mV/DIV (Y), 1 ms/DIV (X), DC range
- Measurement condition:
When all of the following conditions are met:

- Ignition switched ON (engine off)
- P position
- Accelerator pedal fully depressed

Shift solenoid A





- Terminal:
AG (+)-GND (-)
- Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
- Measurement condition:
D position driving in 4GR

Shift solenoid B





- Terminal:
AJ (+)-GND (-)
- Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
- Measurement condition:
D position driving in 1GR

Shift solenoid C





- Terminal:
AL (+)-GND (-)
- Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
- Measurement condition:
D position driving in 1GR

Pressure control solenoid B





- Terminal:
AM (+)-GND (-)
- Oscilloscope setting:
5 V/DIV (Y), 5 ms/DIV (X), DC range
- Measurement condition:
Shifting from 4GR to 5GR, 5GR to 4GR
