2012 Mazda 3 L4-2.5LFACTORY OEM SERVICE PROCEDURE
Ignition Switch: Testing and Inspection
IGNITION SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement
2. Remove the column cover. Service and Repair
3. Remove the ignition switch. Service and Repair

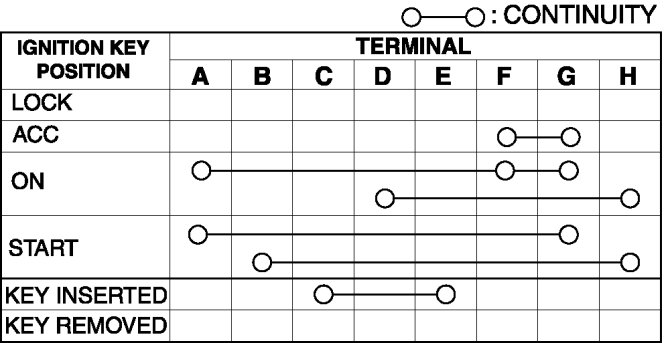

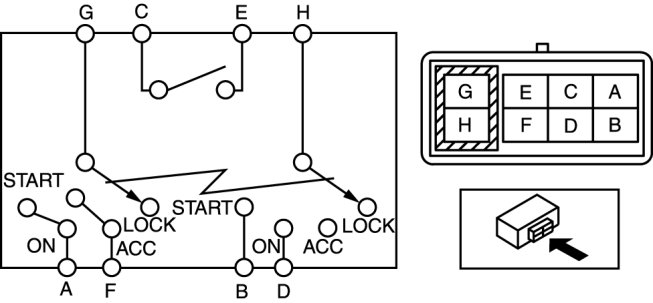

4. Verify that the continuity between the ignition switch terminals is as indicated in the table.
- If not as indicated in the table, replace the ignition switch.
