2012 Mazda 3 L4-2.5LFACTORY OEM SERVICE PROCEDURE
Overhaul
CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]

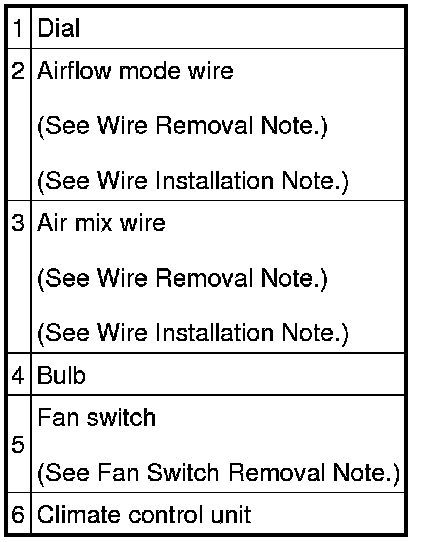

1. Disassemble in the order indicated in the figure.
2. Assemble in the reverse order of disassembly.
Wire Removal Note
1. Remove in the order indicated in the figure.
Wire Installation Note
1. Install as shown in the figure.
Fan Switch Removal Note
1. Pull up the tab (1) and remove the fan switch (2).
