2012 Mazda 3 L4-2.5LFACTORY OEM SERVICE PROCEDURE
Cruise Control Switch: Testing and Inspection

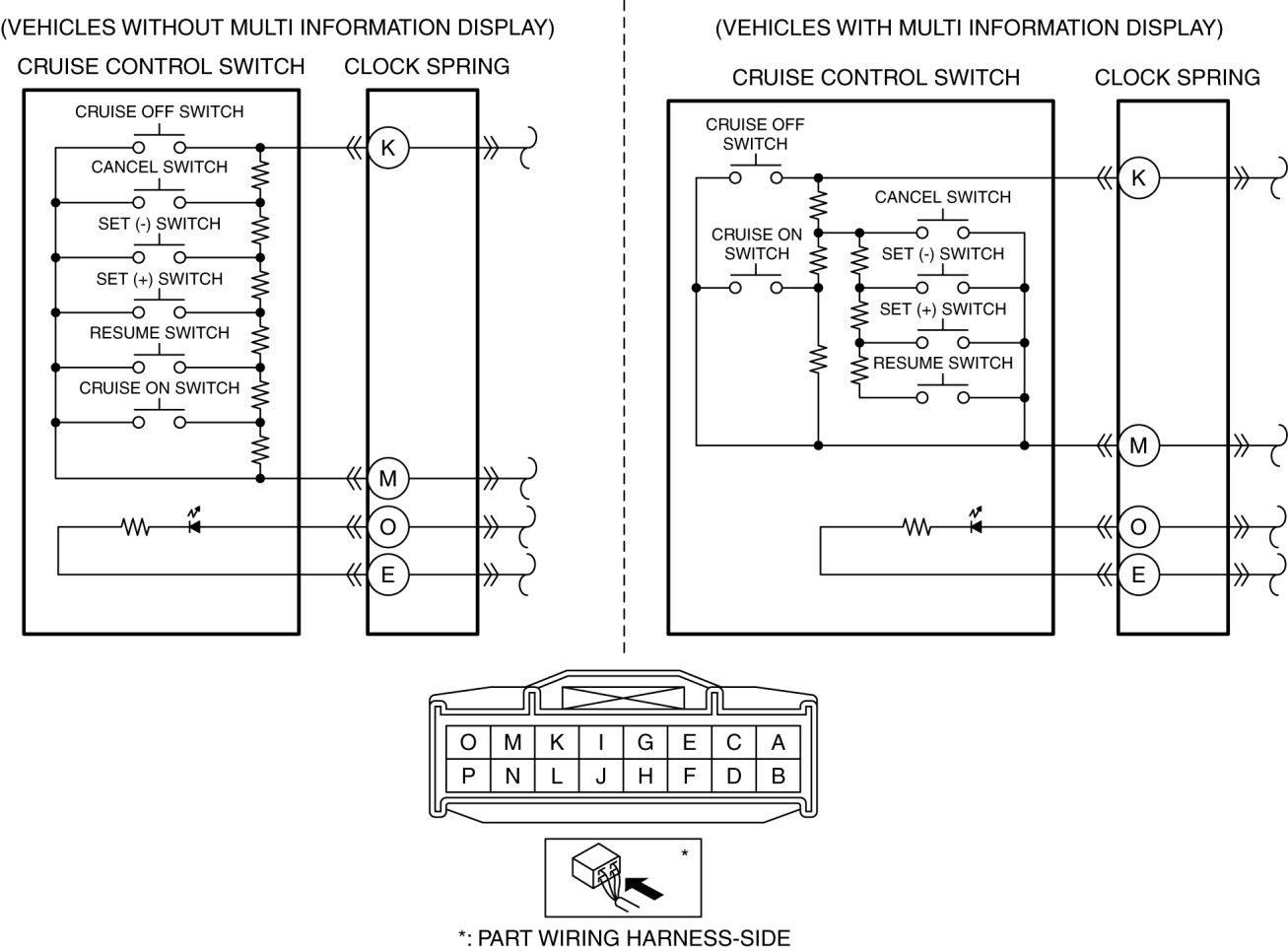

CRUISE CONTROL SWITCH INSPECTION [MZR 2.0, MZR 2.5]
1. Remove the battery cover. Removal and Replacement
2. Disconnect the negative battery cable and wait for 1 min or more. Removal and Replacement
3. Remove the driver-side air bag module. Standard Deployment Control System Two-Step Deployment Control System
4. Disconnect the clock spring connector (part wiring harness-side).
5. Measure the resistance between clock spring terminals K and M (part wiring harness-side) using a tester.
- If not as specified, replace the steering switch. Service and Repair
6. Apply battery positive voltage to clock spring connector terminal O (part wiring harness-side), and terminal E (part wiring harness-side) to ground.
7. Verify that the LED illuminates.
- If the LED does not illuminate, replace the steering switch. Service and Repair
