2012 Mazda 2 L4-1.5LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Testing and Inspection
CLIMATE CONTROL UNIT INSPECTION [MANUAL AIR CONDITIONER]
1. Remove the climate control unit with the connector connected. Removal and Replacement
2. Switch the ignition to ON.
3. Connect the negative (-) lead of the tester to the body ground.

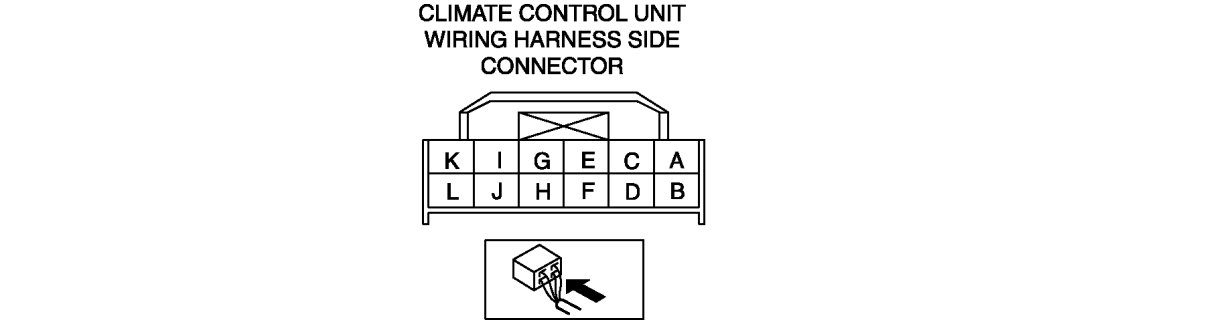

4. After inserting the positive (+) lead of the tester into the climate control unit connector, measure the voltage according to the terminal voltage table.
- If there is any malfunction, inspect the parts under "Inspection item(s)".
- If the parts under "Inspection item(s)" are normal, replace the climate control unit.

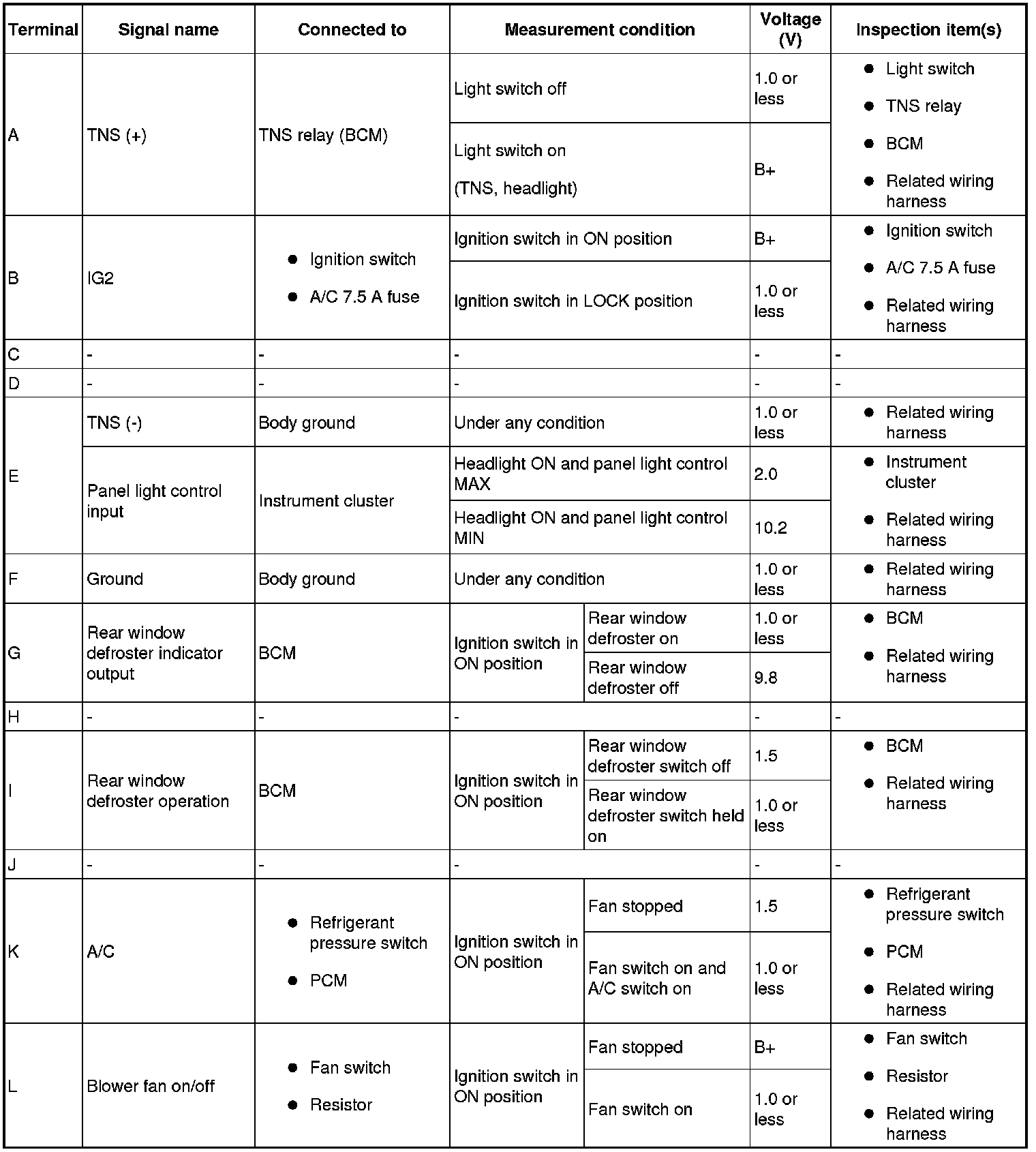

Terminal Voltage Table (Reference)
