2011 Mazda 6 s Touring PlusFACTORY OEM SERVICE PROCEDURE

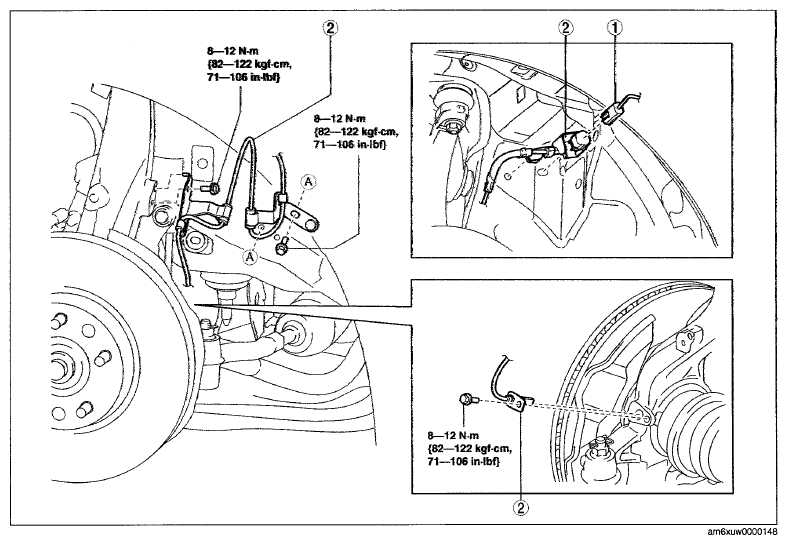

Front Abs Wheel-Speed Sensor Removal/Installation: Notes
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that there is no twisting in the ABS wheel-speed sensor.
CONNECTOR TERMINAL REFERENCE CHART
| 1 | Connector (See CONNECTOR REMOVAL NOTE .) |
| 2 | Front ABS wheel-speed sensor |
