2011 Mazda 6 s Touring PlusFACTORY OEM SERVICE PROCEDURE

DSC Off Switch Inspection

Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the DSC OFF switch terminals is as indicated in the table.
- If not as indicated in the table, replace the DSC OFF switch.

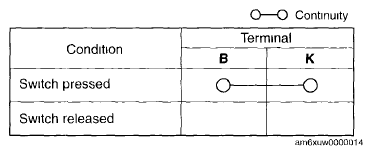

Fig 1: DSC OFF Switch Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.
Apply battery voltage to DSC OFF switch terminal E, and connect terminal A to ground.
Verify that the LED illuminates.

If there is any malfunction, replace the DSC OFF switch.

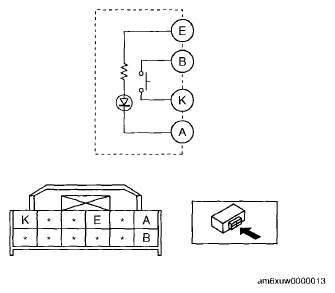

Fig 2: DSC OFF Switch Circuit

Courtesy of MAZDA MOTORS CORP.
