2011 Mazda 6 i TouringFACTORY OEM SERVICE PROCEDURE
Neutral Switch Inspection
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the neutral switch connector. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
- Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)

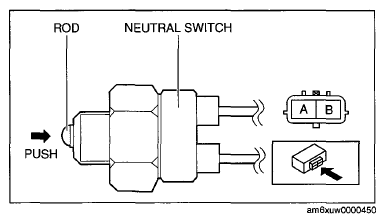

- Inspect for continuity between neutral switch terminals A and B.
- If not as specified, replace the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
NEUTRAL SWITCH SPECIFICATIONMeasured condition Continuity Rod pushed Continuity detected Except above No continuity
