2011 Mazda 6 i TouringFACTORY OEM SERVICE PROCEDURE

Control System Location Index

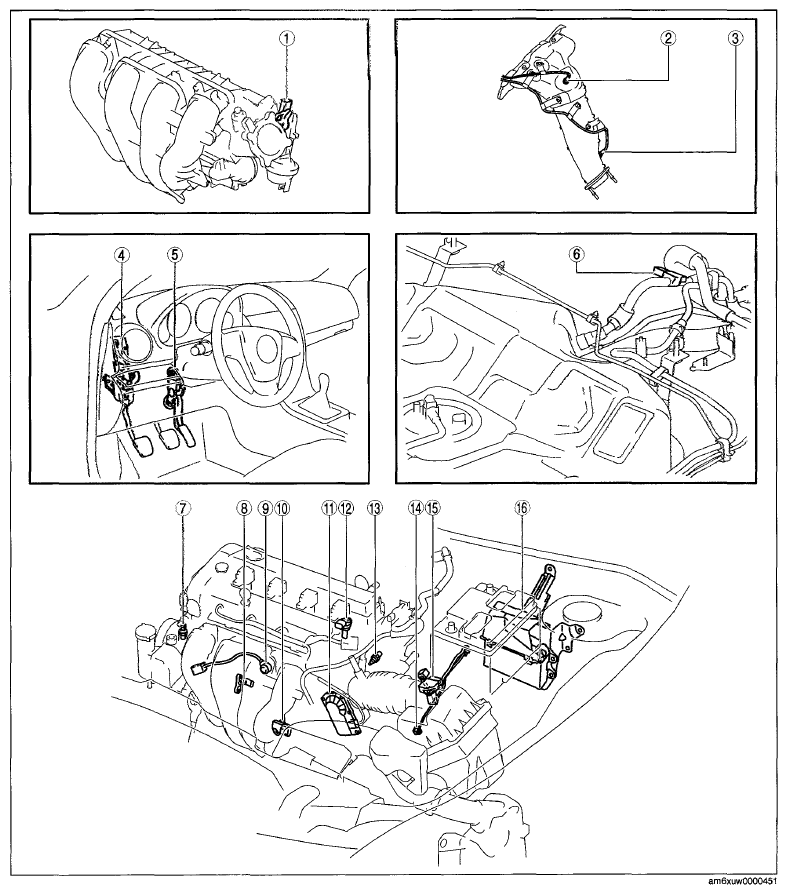

Fig 1: Control System Sensors Location
G07620698Courtesy of MAZDA MOTORS CORP.
CONTROL SYSTEM LOCATION INDEX

1 Variable tumble shutter valve position sensor (See VARIABLE TUMBLE SHUTTER VALVE POSITION SENSOR INSPECTION .)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
2 A/F sensor
(See AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION .)
(See AIR FUEL RATIO (A/F) SENSOR INSPECTION .)
3 HO2S
(See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .)
(See HEATED OXYGEN SENSOR (HO2S) INSPECTION .)
4 CPP switch (MTX)
(See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION .)
(See CLUTCH PEDAL REMOVAL/INSTALLATION [G66M-R] .)
5 APP sensor
(See ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION .)
(See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
6 Fuel tank pressure sensor
(See FUEL TANK PRESSURE SENSOR INSPECTION .)
(See FUEL TANK REMOVAL/INSTALLATION .)
7 PSP switch
(See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION .)
(See POWER STEERING OIL PUMP DISASSEMBLY/ASSEMBLY .)
8 CKP sensor
(See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
(See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION .)
9 KS (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .)
10 MAP sensor
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
11 TP sensor
(See THROTTLE POSITION (TP) SENSOR INSPECTION .)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
12 CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
13 ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
(See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION .)
14 Neutral switch (MTX)
(See NEUTRAL SWITCH INSPECTION .)
(See NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R] .)
15 MAF/IAT sensor
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
16 PCM (BARO sensor) (See PCM REMOVAL/INSTALLATION .)
(See PCM INSPECTION .)
(See PCM CONFIGURATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
