2011 Mazda 3 L4-2.5LFACTORY OEM SERVICE PROCEDURE

Evaporative Emission Control Canister: Service and Repair

CHARCOAL CANISTER REMOVAL/INSTALLATION [LF, L5]

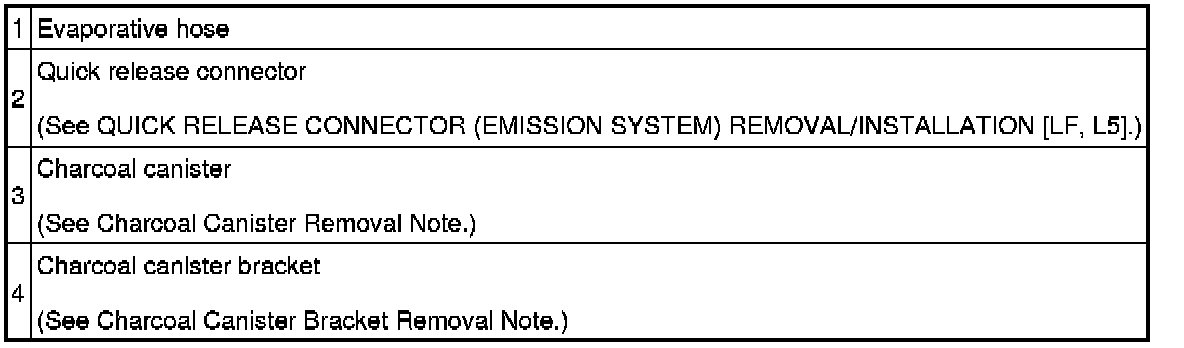

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

Charcoal Canister Removal Note

1. Remove the rear stabilizer. Rear Suspension - Stabilizer Removal/Installation

2. Remove the rear coil spring.

3. Remove the rear lower arm. Rear Suspension - Lower Arm Removal/Installation

4. Remove the rear crossmember component. Service and Repair

5. Remove the charcoal canister.

Charcoal Canister Bracket Removal Note

NOTE:
- The charcoal canister bracket is installed using rivets.

1. Push out the mandrel using a hammer and punch (2-2.8 mm {0.08-0.11 in} diameter).

2. Remove the flange using a drill (5 mm {0.20 in} drill bit).
