ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [LF, L5]

WARNING:
- When the engine is hot, it can badly burn. Turn off the engine and wait until it is cool before removing the ECT sensor.

ECT Sensor No.1

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Drain the engine coolant. Service Precautions

4. Remove the battery and battery tray. Removal and Replacement

5. Disconnect the ECT sensor No.1 connector.

6. Remove the ECT sensor No.1 using the SST.

7. Install in the reverse order of removal.

8. Refill the engine coolant. Service Precautions

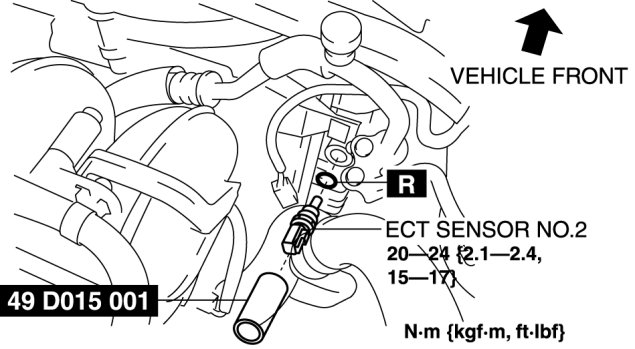

ECT Sensor No.2

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable.

3. Drain the engine coolant. Service Precautions

4. Disconnect the ECT sensor No.2 connector.

5. Remove the ECT sensor No.2 using the SST.

NOTE:
- Wipe off any oil or engine coolant if it gets on the ECT sensor No.2 installation area.

6. Install in the reverse order of removal.

7. Refill the engine coolant. Service Precautions
