2011 Mazda 3 L4-2.5LFACTORY OEM SERVICE PROCEDURE
Restraint System
DTC B2856, B2886, B2887 [STANDARD DEPLOYMENT CONTROL SYSTEM]
System Malfunction Location
Detection Condition
WARNING:
- Detection conditions are for understanding the DTC outline before performing an inspection. Performing an inspection according to only the detection conditions may cause injury due to an operating error, or damage the system. When performing an inspection, always follow the inspection procedure.
- The SAS control module detects an error of impact magnitude set in the sensor, which occurs due to installation mismatch of the crash zone sensor or side air bag sensors.
Possible Causes
- Crash zone sensor misinstalled with wrong sensor
- Driver-side side air bag sensor misinstalled with wrong sensor
- Passenger-side side air bag sensor misinstalled with wrong sensor
- SAS control module malfunction

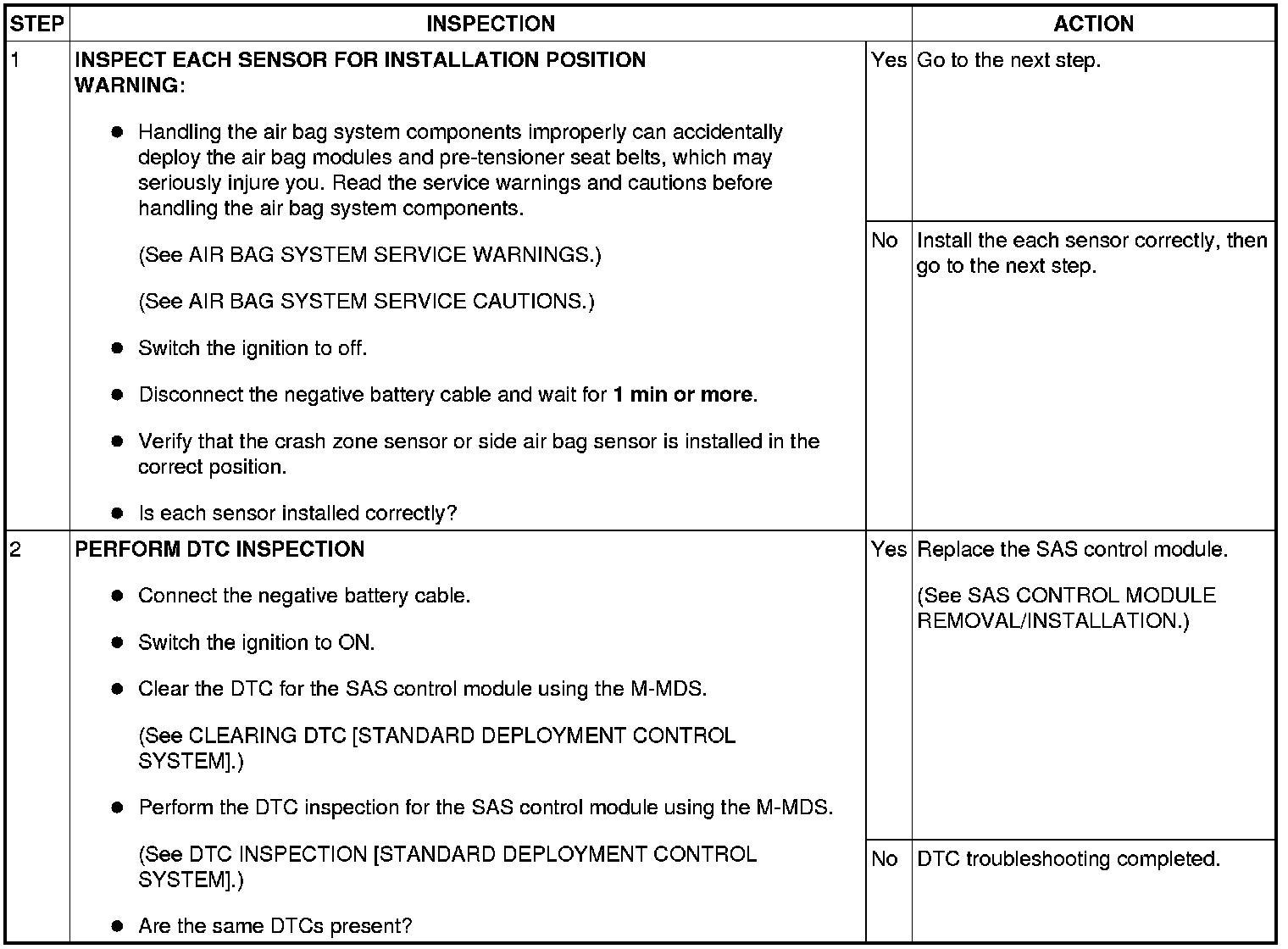

Diagnostic Procedure
