2010 Mazda CX-9 Touring, 3.7 V, AWDFACTORY OEM SERVICE PROCEDURE
Rear Abs Wheel-Speed Sensor Removal/Installation [AWD]
- Remove the trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)
- Remove the seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION .)
- Remove the third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
- Remove the rear scuff plate inner. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
- Remove the third-row seat belt lower anchor installation bolt. (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
- Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

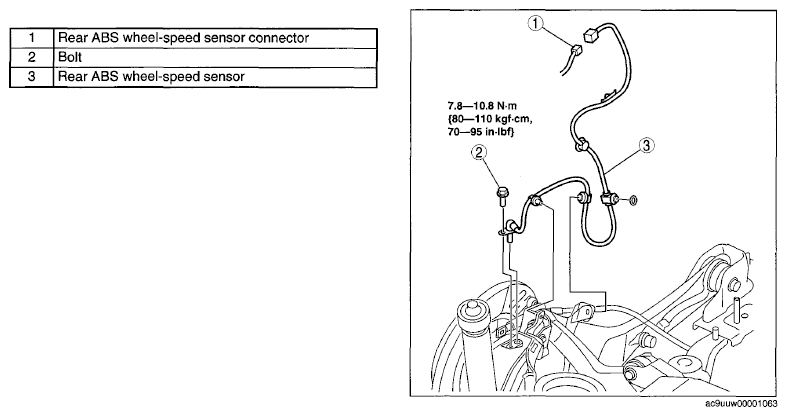

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
