2010 Mazda 5 Sport, 2.3 L, StandardFACTORY OEM SERVICE PROCEDURE

Continuity Inspection

  1. Remove the neutral switch. (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
  2. Verify that the continuity between neutral switch terminals A and B is as indicated in the table.
    • If there is no malfunction, perform the "Circuit Open/Short Inspection".
    • If there is any malfunction, replace the neutral switch.
      CONTINUITY MEASURED CONDITION

      Measured condition Transmission Continuity
      Rod pushed In neutral Continuity detected
      Except above Other No continuity

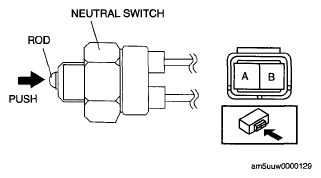

      Fig 1: Inspecting Neutral Switch
      G05543217Courtesy of MAZDA MOTORS CORP.
