2010 Mazda 5 L4-2.3LFACTORY OEM SERVICE PROCEDURE
PID/Data Monitor Table
PCM INSPECTION [L3]

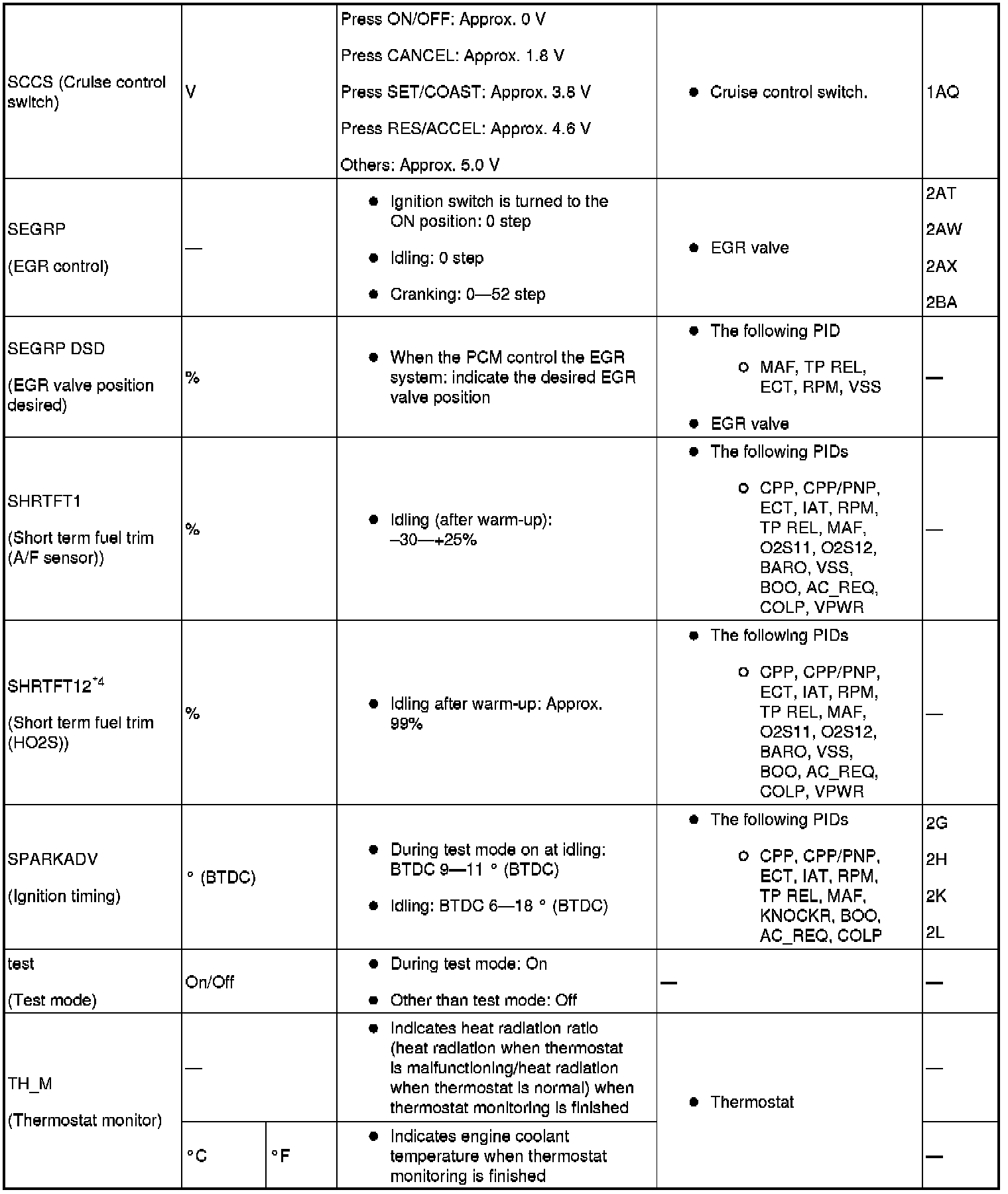

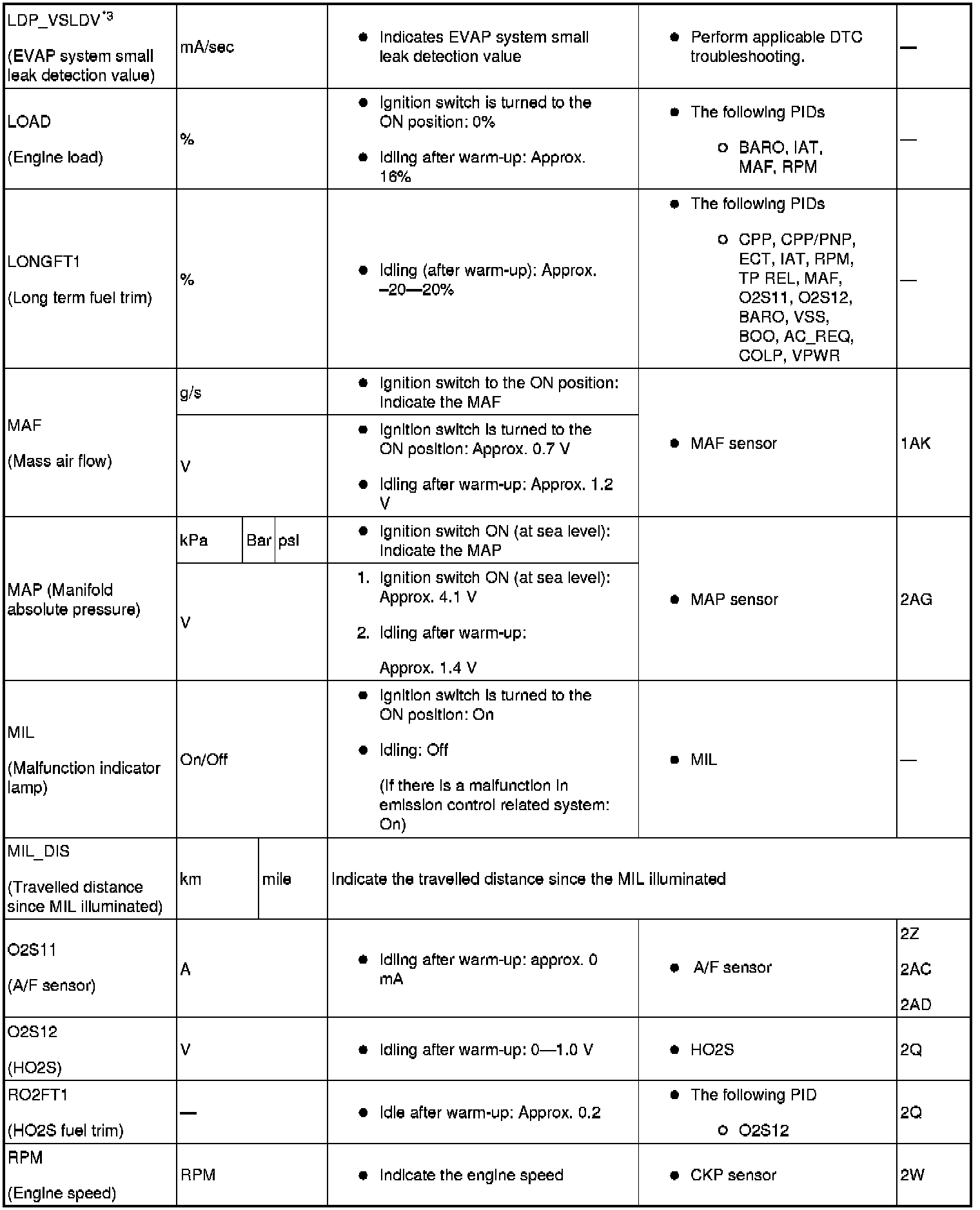

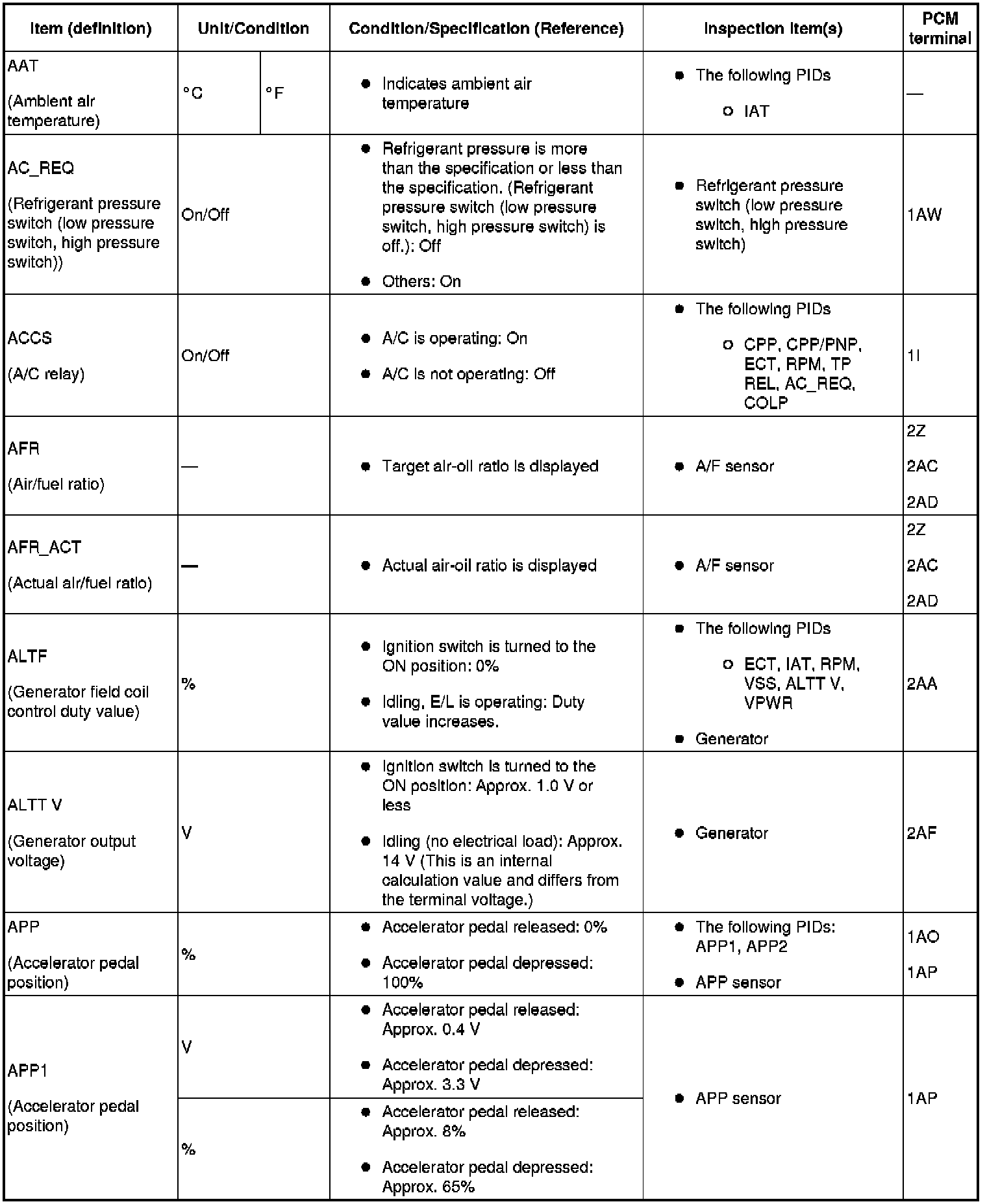

PID/Data Monitor Table (Part 1):
PID/Data Monitor Table (Part 2):
PID/Data Monitor Table (Part 3):
PID/Data Monitor Table (Part 4):
PID/Data Monitor Table (Part 5):
PID/Data Monitor Table (Part 6):
PID/Data Monitor Table (Part 7):
PID/Data Monitor Table (Part 8):
PID/Data Monitor Table (Part 9):
*1
The voltage may vary excessively depending on the weather or battery conditions.
*2
MTX
*3
California emission regulation applicable model
*4
TYPE A
*5
TYPE B
