2010 Mazda 5 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Oxygen Sensor: Service and Repair
AIR FUEL RATIO (A/F) SENSOR, HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION [L3]
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
1. Remove the battery cover. Removal and Replacement
2. Disconnect the negative battery cable.
3. Remove the plug hole plate. Service and Repair
4. Disconnect the A/F sensor or HO2S connector.

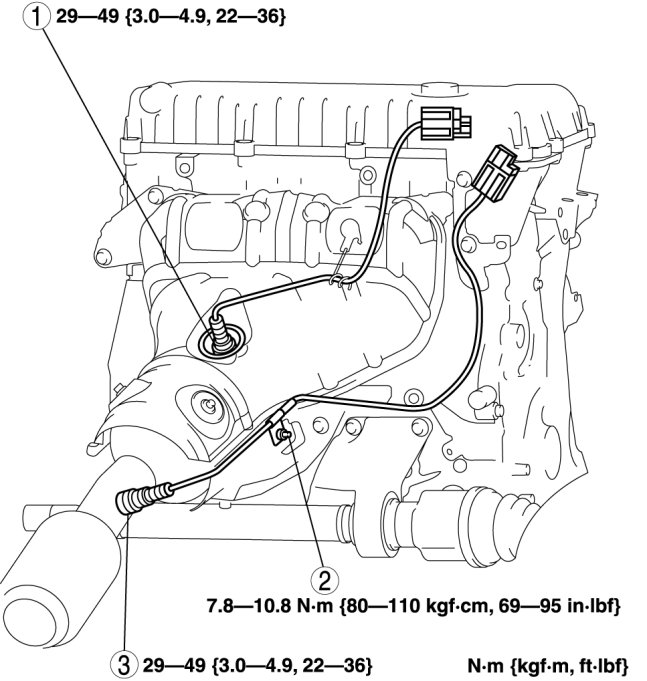

5. Remove in the order indicated in the table.
A/F Sensor, HO2S Removal Note

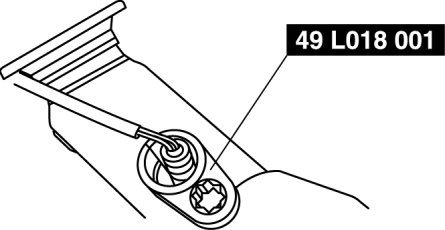

1. Remove the HO2S using the SST.
Wiring Harness Bracket Installation Note
NOTE:
- There might be no pin. If there is no pin, lock the wiring harness bracket against rotation and tighten the nut.
