2010 Mazda 5 L4-2.3LFACTORY OEM SERVICE PROCEDURE
Rear Wheel Alignment
REAR WHEEL ALIGNMENT
Rear wheel alignment (Unloaded)*1
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Total Toe-in Adjustment
1. Loosen the securing nut of the adjusting cam bolt.

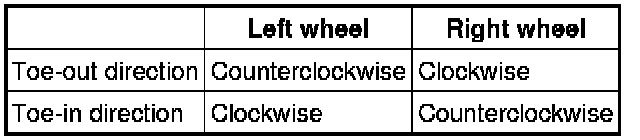

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.
3. Tighten the nut.
Tightening torque
- 80-105 Nm {8.2-10.7 kgf-m, 59.1-77.4 ft-lbf}
