2010 Mazda 3 L4-2.5L
Alignment
2010 Mazda 3 L4-2.5LSECTION Alignment
FRONT WHEEL ALIGNMENT
Front wheel alignment (Unloaded)*1 [LF, L5]
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Front wheel alignment (Unloaded)*1 [L3 WITH TC]
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
REAR WHEEL ALIGNMENT

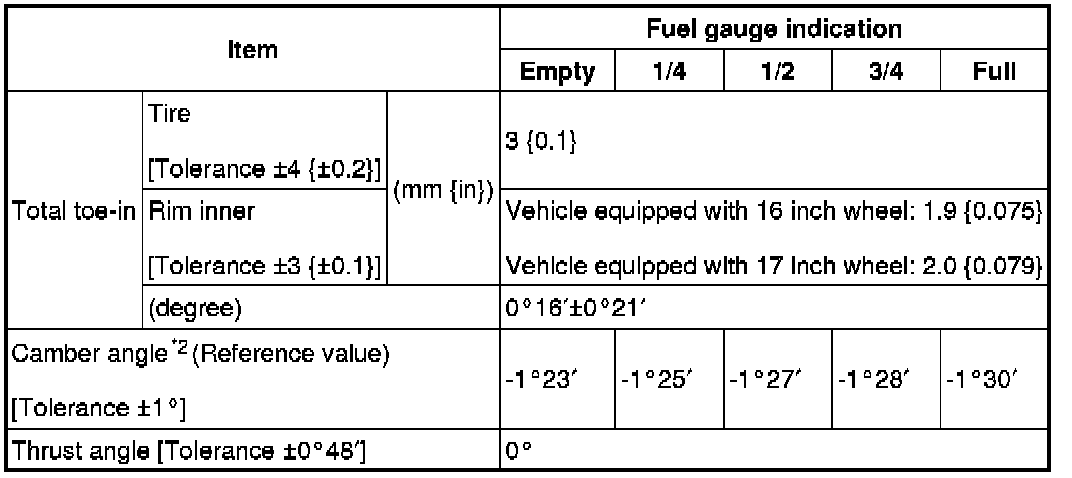

Rear wheel alignment (Unloaded)*1 [LF, L5]
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Rear wheel alignment (Unloaded)*1 [L3 WITH TC]
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
