2009 Mazda Tribute 4WD L4-2.5L
Vehicle Speed Sensor: Service and Repair
2009 Mazda Tribute 4WD L4-2.5LSECTION Service and Repair

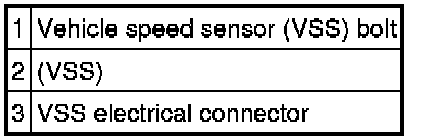

VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION
1. With the vehicle in NEUTRAL, position it on a hoist.See Lifting.
2. Remove the VSS bolt.
NOTE:The electrical connector and the vehicle speed sensor (VSS) are accessed from the top of the transaxle.
3. Disconnect the electrical connector and remove the VSS.
4. To install, reverse the removal procedure.
