2009 Mazda Tribute 4WD L4-2.5L

Air Flow Meter/Sensor: Testing and Inspection

2009 Mazda Tribute 4WD L4-2.5LSECTION Testing and Inspection



MASS AIR FLOW (MAF) SENSOR

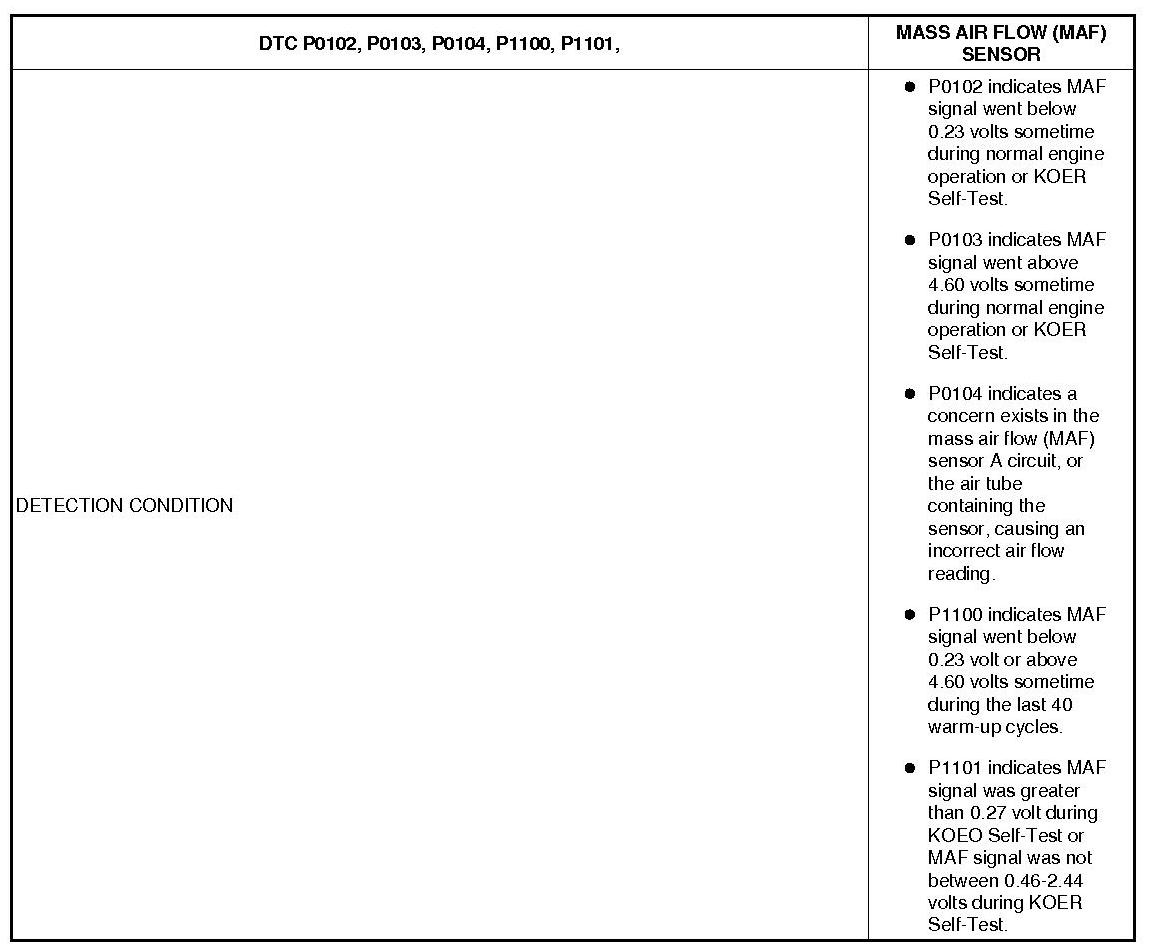

Detection Condition:

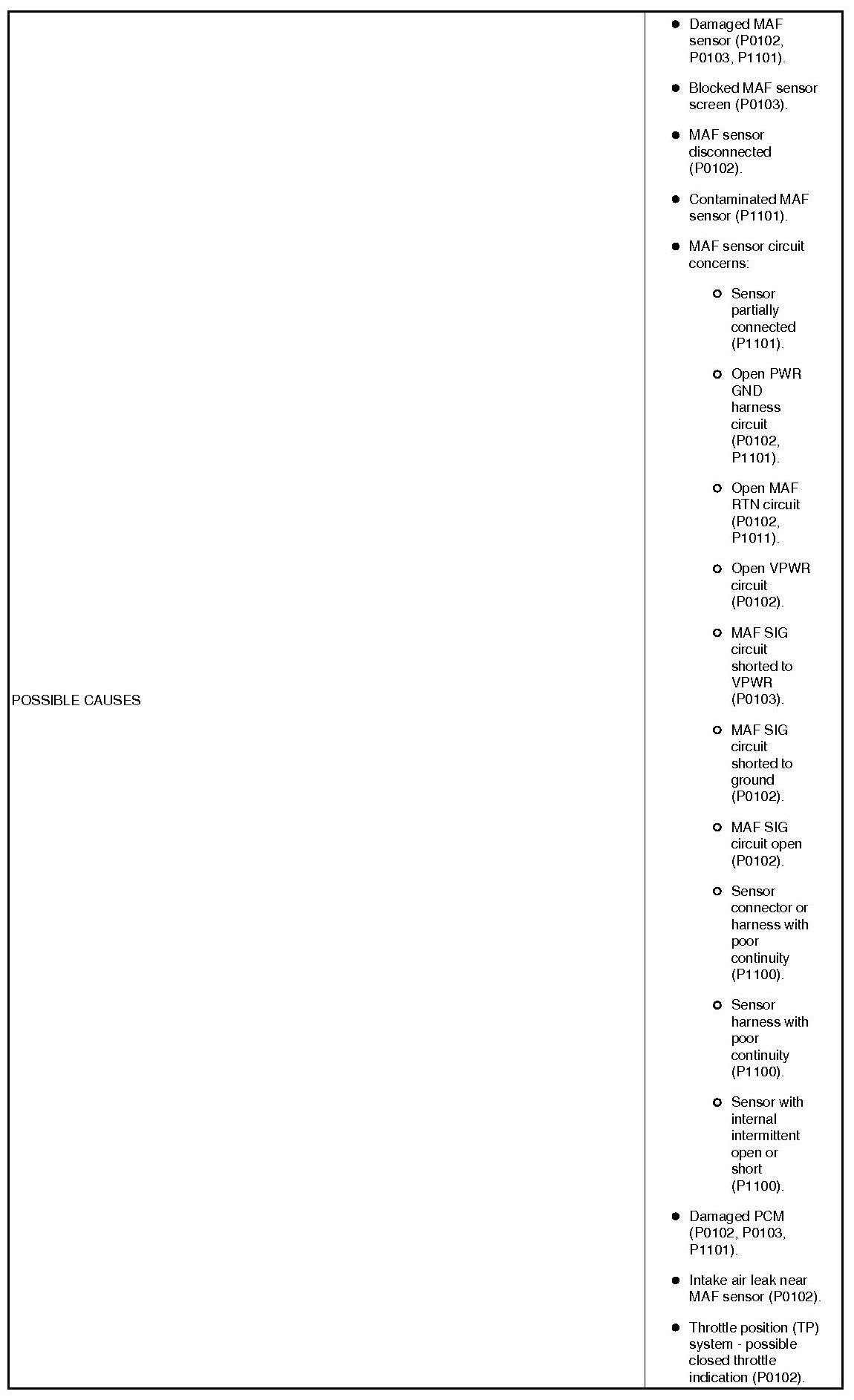

Possible Causes (Part 1):





Possible Causes (Part 2):

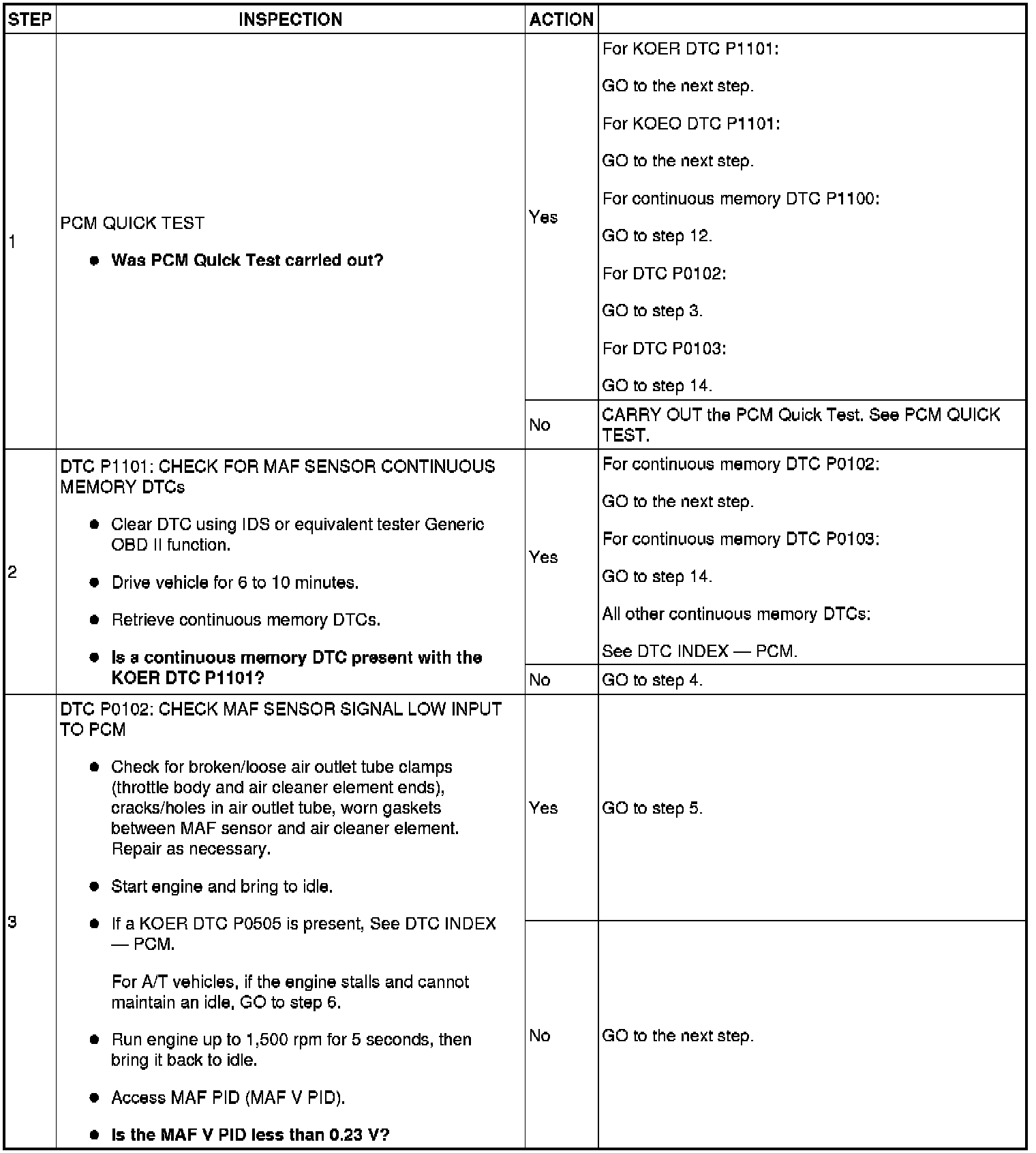

Step 1-Step 3:

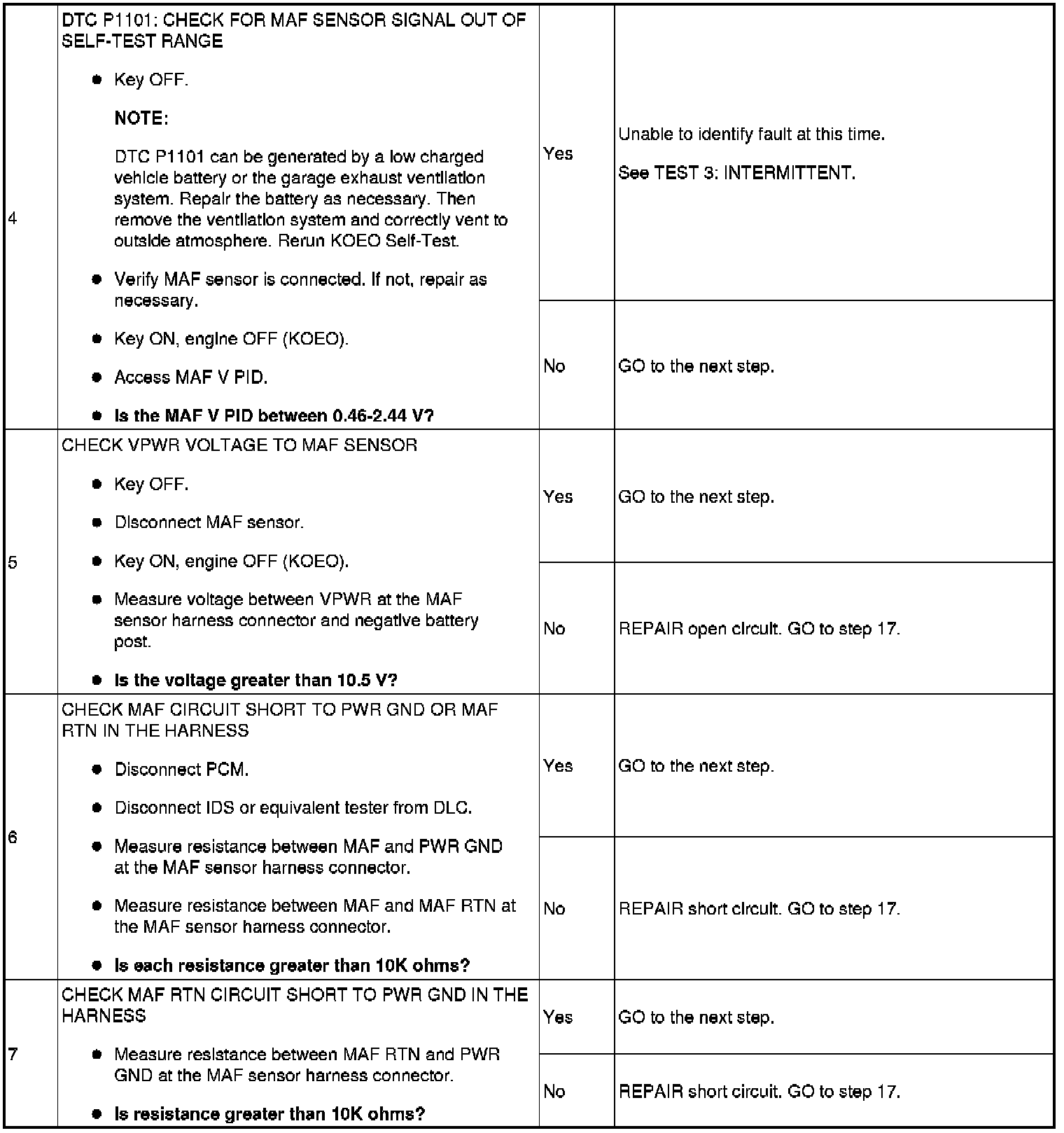

Step 4-Step 7:





Step 8-Step 11:





Step 12-Step 13:

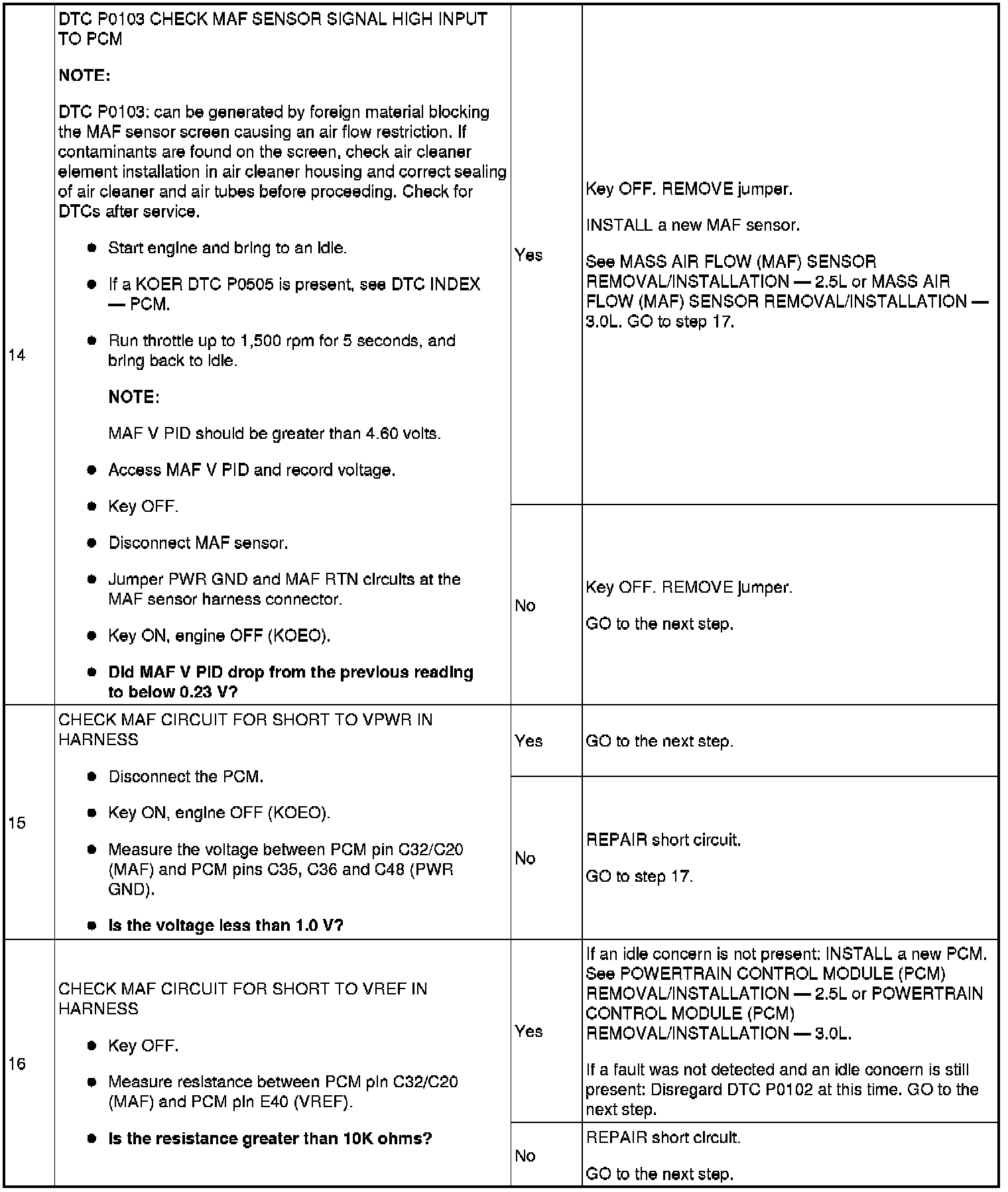

Step 14-Step 16:





Step 17:
