2009 Mazda Tribute 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Piston Ring Assembly Note
Piston Ring Assembly Note
1. Install the two oil control ring segments and spacer.
2. Verify that the second ring is installed with scraper face side downward.
3. Verify that the top ring is installed with chamfered face side inner of upper.

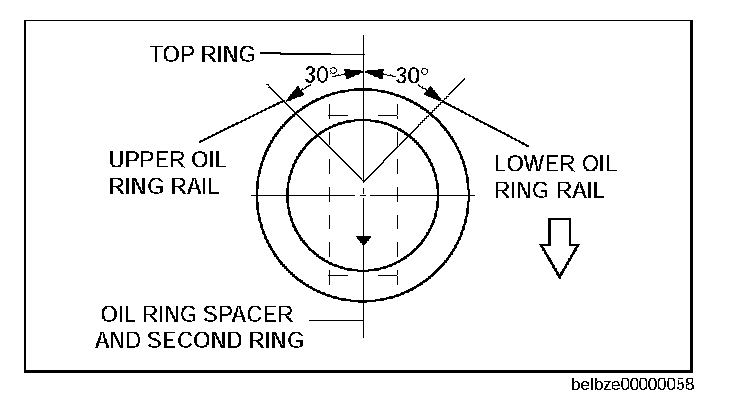

4. Position the end gap of each ring as indicated in the figure.
1. Install the two oil control ring segments and spacer.
2. Verify that the second ring is installed with scraper face side downward.
3. Verify that the top ring is installed with chamfered face side inner of upper.
4. Position the end gap of each ring as indicated in the figure.
