2009 Mazda Tribute 4WD L4-2.5L
Engine Lubrication
2009 Mazda Tribute 4WD L4-2.5LSECTION Engine Lubrication
-

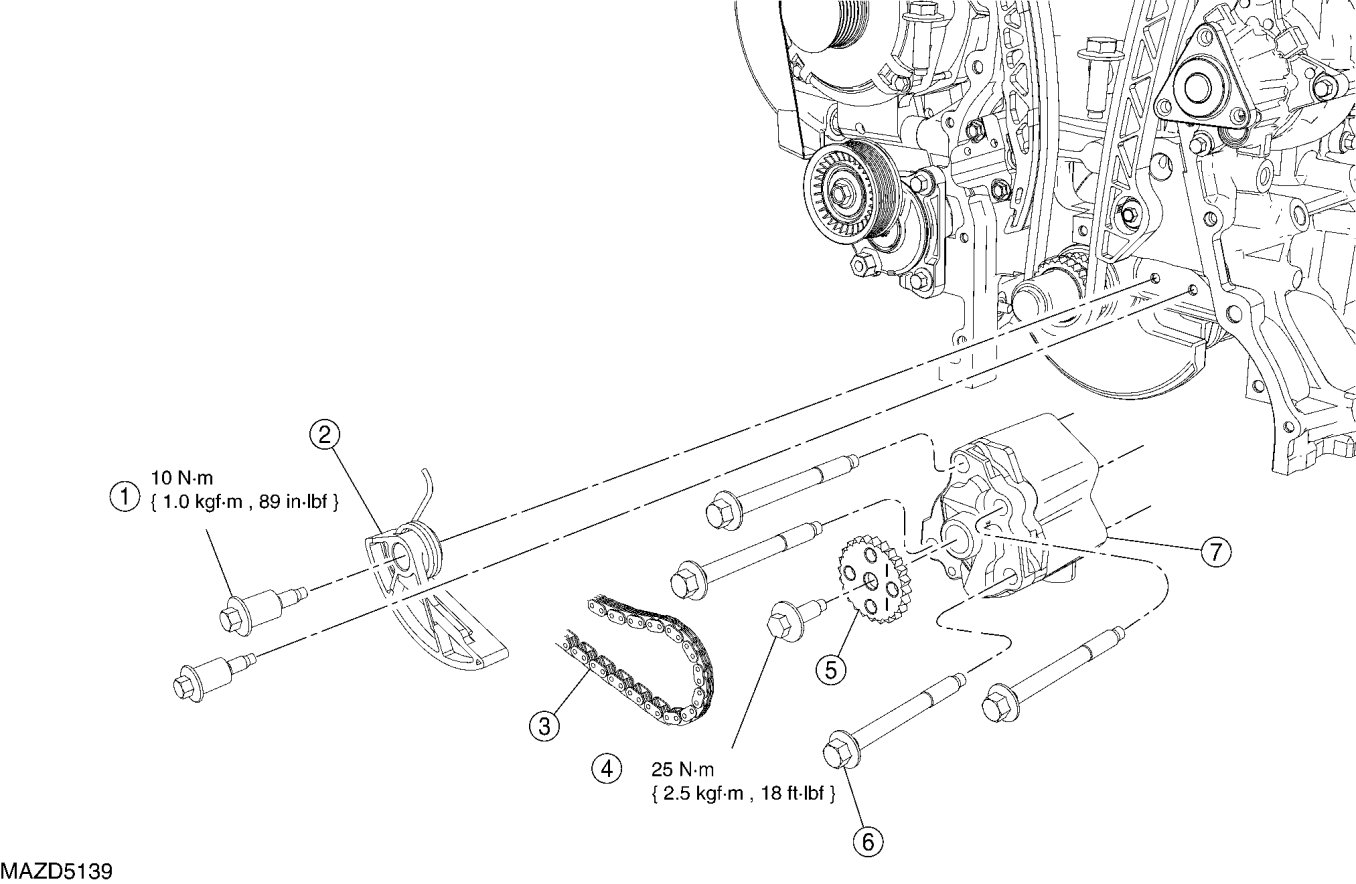

ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - 2.5L

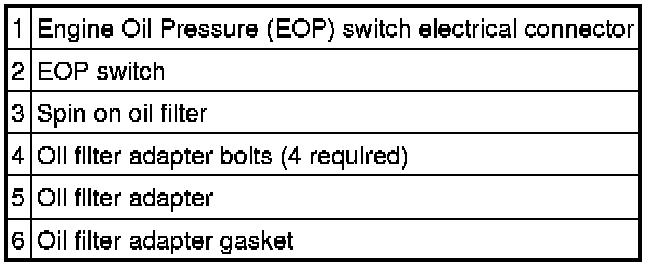

Oil Filter Adapter, Oil Filter Element and Engine Oil Pressure (EOP) Switch
Oil Filter Adapter, Spin On Oil Filter and Engine Oil Pressure (EOP) Switch
NOTE:Automatic transaxle shown, manual transaxle similar.

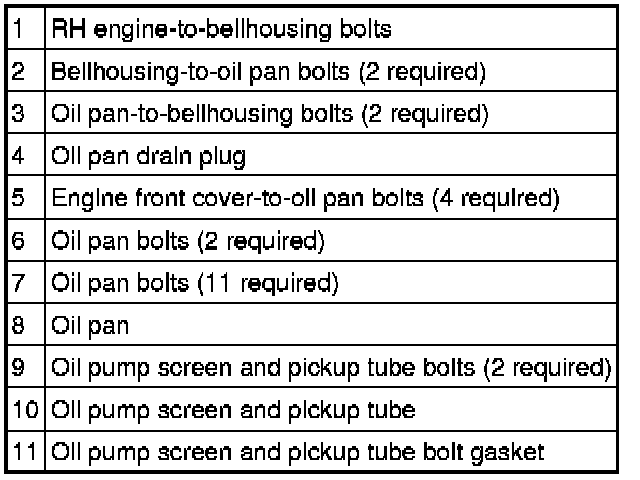

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles
Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles
Oil Pan, Oil Pump Screen and Pickup Tube
1. For additional information, see the procedures.
