2009 Mazda Tribute 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Pinpoint Test 8: An Individual Button/Feature Is Inoperative From The Remote Keyless Entry (RKE) Transmitter
PINPOINT TEST 8: AN INDIVIDUAL BUTTON/FEATURE IS INOPERATIVE FROM THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER
Normal Operation
When any remote keyless entry (RKE) or integrated keyhead transmitter (IKT) button is pressed, the SJB receives and processes the command to provide the appropriate output.
Possible Causes
- Door locks
- Horn system
- Liftgate glass latch release
- Turn signal system
- Integrated keyhead transmitter (IKT)
Diagnostic Procedure
NOTE:The panic feature will only operate when the key is in the OFF position.

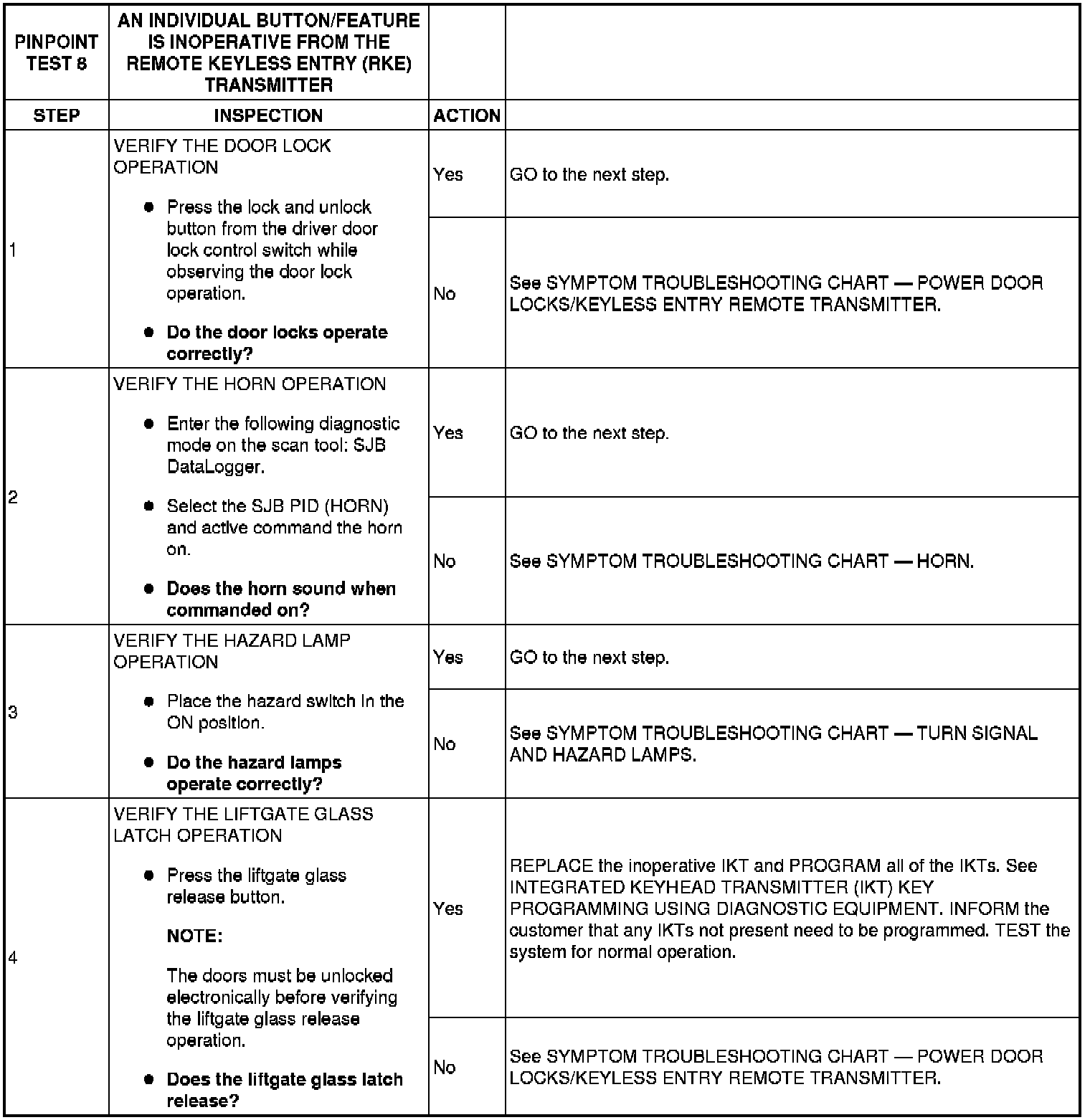

Step 1-Step 4:
