2009 Mazda Mazdaspeed3 L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE
Body Control Module: Service and Repair
Passenger Junction Box (PJB) Removal/Installation
1. When replacing the PJB, perform the following:
-PJB Configuration (See PASSENGER JUNCTION BOX (PJB) CONFIGURATION.) Programming and Relearning
2. Disconnect the negative battery cable.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
Connector A Removal Note
1. Push the release tab in the direction of arrow.
2. Rotate the lever in the direction of the arrow and remove connector A.
Connector B Removal Note
1. Rotate the lever in the direction of the arrow and remove connector B

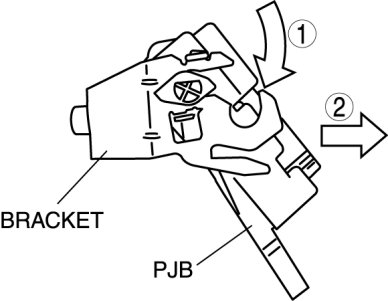

PJB Removal Note
1. Turn the screws counterclockwise to remove the PJB.
Note
- Screws cannot be removed from the PJB.
2. Remove the PJB as shown in the figure.
Connector B Installation Note
Connector A Installation Note
After connecting the connector, rotate the lever in the direction of the arrow to install connector A.
