2009 Mazda Mazdaspeed3 L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE
Rear Wheel Alignment
REAR WHEEL ALIGNMENT
Rear wheel alignment [LF and L3] (Unloaded)*1
Rear wheel alignment [L3 WITH TC] (Unloaded)*1
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30′.
NOTE:

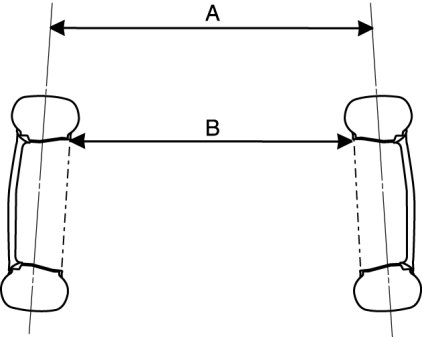

Total toe-in measuring position
- Tire: A indicated in the figure (between the center of the tires)
- Rim inner: B indicated in the figure (between the inner side of the rims)
Total Toe-in Adjustment
1. Loosen the installation nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to adjust the camber.
3. Tighten the nut.
Tightening torque
- 80.0-100.0 Nm {8.16-10.19 kgf-m, 59.01-73.75 ft-lbf}
