2009 Mazda B2300 AutomaticFACTORY OEM SERVICE PROCEDURE
Network Topology: Notes

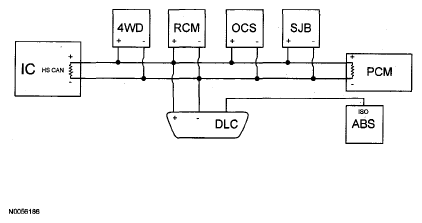

NETWORK TOPOLOGY
| Module Name | Network Type | Termination Module |
|---|---|---|
| Anti-lock brake system (ABS) module | ISO | N/A |
| Instrument cluster (IC) | HS-CAN | Yes |
| Four wheel drive (4WD) control module | HS-CAN | No |
| Occupant classification sensor (OCS) module | HS-CAN | No |
| Powertrain control module (PCM) | HS-CAN | Yes |
| Restraints control module (RCM) | HS-CAN | No |
| Smart junction box (SJB) | HS-CAN | No |
