Combined Sensor Inspection

  1. Switch the ignition to off.
  2. Connect the M-MDS to the DLC-2.
  3. Select the following PIDs and inspect the lateral acceleration and yaw rate. See ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)] .
    • LAT_ACCL (lateral acceleration)
    • YAW_RATE (yaw rate)
    1. Lateral acceleration inspection
      Fig 1: Identifying DLC-2
      G06205563Courtesy of MAZDA MOTORS CORP.
      1. Verify the LAT_ACCL change when the combined sensor is tilted to the left and right.

      Standard

      When the sensor is tilted to the right (A): LAT_ACCL changes positively.

      When the sensor is tilted to the left (B): LAT_ACCL changes negatively.

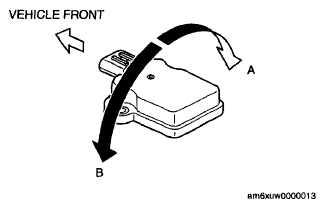

      Fig 2: Inspecting LAT_ACCL Change
      G06205590Courtesy of MAZDA MOTORS CORP.
    2. Yaw rate inspection
      1. Verify the YAW_RATE change when the combined sensor is rotated to the left and right.

      Standard

      When the sensor is rotated to the right (A): YAW_RATE changes negatively.

      When the sensor is rotated to the left (B): YAW_RATE changes positively.

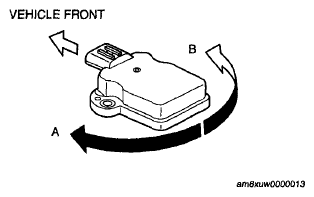

      Fig 3: Inspecting Yaw Rate
      G06205591Courtesy of MAZDA MOTORS CORP.
