2009 Mazda 6 s Grand TouringFACTORY OEM SERVICE PROCEDURE

Keyless Control Module Removal/Installation [Advanced Keyless Entry And Push Button Start System]

If the keyless control module is replaced, always perform the following procedure.
- Vehicles with immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
  - Immobilizer System-related Parts Programming [No. 4 Programming Procedure Due to Keyless Control Module Replacement] (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
- Vehicles without immobilizer system
  - Keyless Control Module Configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
  - Advanced Key Id Code Registration (See ADVANCED KEY ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
  - Steering Lock Unit Id Code Registration (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
Disconnect the negative battery cable.
Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

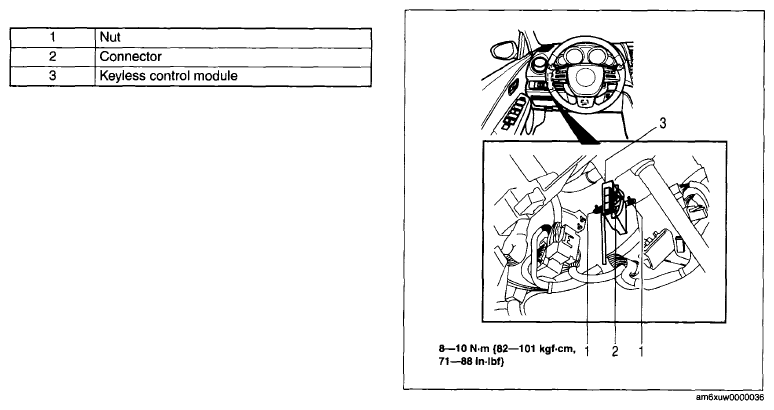

Fig 1: Keyless Control Module, Connector & Mounting Nut With Torque Specifications

G06200942

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal
