2009 Mazda 6 s Grand TouringFACTORY OEM SERVICE PROCEDURE

Keyless Control Module Configuration [Advanced Keyless Entry And Push Button Start System]

NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the KEYLESS CONTROL MODULE CONFIGURATION
  1. Connect the M-MDS to DLC-2

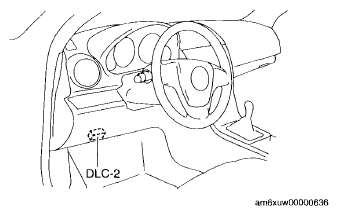

    2. Fig 1: Identifying DLC-2 Connector
    G06200945Courtesy of MAZDA MOTORS CORP.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS
    • When using the IDS (laptop PC)
      1. Select the "Module Programming"
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Module Installation".
    2. Select "RKE".
  4. Perform the configuration according to the directions on the screen.
  5. Retrieve DTCs by the M-MDS, then verify that there is no DTC present
