2009 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Auto Light/Wiper Control Module Removal/Installation - Lighting Systems
AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION
CAUTION:
- When replacing the auto light/wiper control module, the configuration procedure must be performed before removing the auto light/wiper control module. Replacing the auto light/wiper control module without performing the configuration procedure will result in system malfunction.
NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.
1. Perform the auto light/wiper control module configuration when replacing it. Auto Light/Wiper Control Module Configuration
2. Disconnect the negative battery cable.
3. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation
4. Remove the nut.
5. Disconnect the connectors.

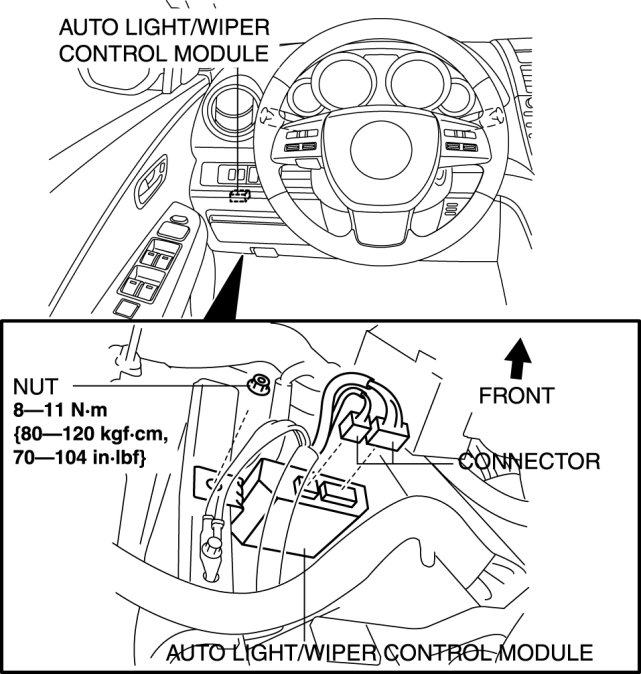

6. Remove the auto light/wiper control module.
7. Install in the reverse order of removal.
