2009 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE
Throttle Position Sensor: Testing and Inspection
THROTTLE POSITION (TP) SENSOR INSPECTION [MZI-3.7]
Sensor Output Value Inspection
1. Verify that no DTC related to APP sensor has been detected.
- If any DTCs related to APP sensor have been detected, perform the DTC inspection. DTC Table [Engine]
2. Switch the ignition to ON.
3. Inspect the following items using the PID/DATA monitor function. Diagnostic Monitoring Test Results

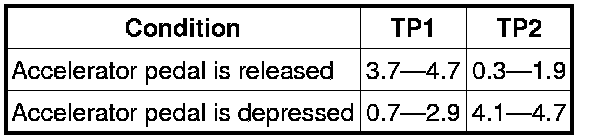

- Verify that the sensor output value is as indicated in the table below according to the condition of the accelerator pedal.
- TP1
- TP2
Specification
- If it cannot be verified, replace the throttle body. Service and Repair
