2009 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE

DTC Display




DTC DISPLAY

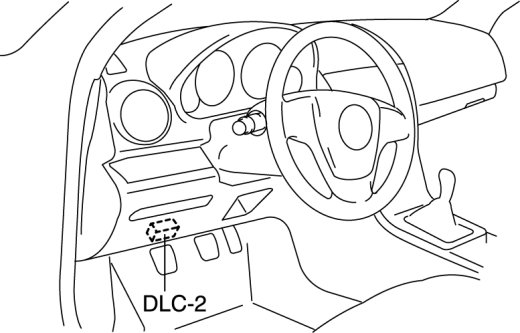

1. Connect the M-MDS to the DLC-2.

Factory service manual diagram





2. Expose the solar radiation sensor to natural sunlight.
NOTE:
- If natural sunlight is not shone on the solar radiation sensor, the climate control unit determines a malfunction and indicates DTC "B1A63:11, B1A63:13, B1A64:11, B1A64:13".

3. After the vehicle is identified, select the following items from the initialization screen of the M-MDS.

- When using the IDS (laptop PC)

- Select "Self Test".
- Select "Modules".
- Select "EATC".

- When using the PDS (Pocket PC)

- Select "Module Tests".
- Select "EATC".
- Select "Self Test".

4. Verify the DTC according to the directions on the screen.

- If any DTCs are displayed, perform troubleshooting according to the corresponding DTC inspection.

5. After completion of repairs, clear all DTCs stored in the climate control unit. Clearing DTC
