2009 Mazda 6 V6-3.7LFACTORY OEM SERVICE PROCEDURE

Dynamic Stability Control (DSC)





ON-BOARD DIAGNOSIS [DYNAMIC STABILITY CONTROL (DSC)]


PID/DATA Monitor Table

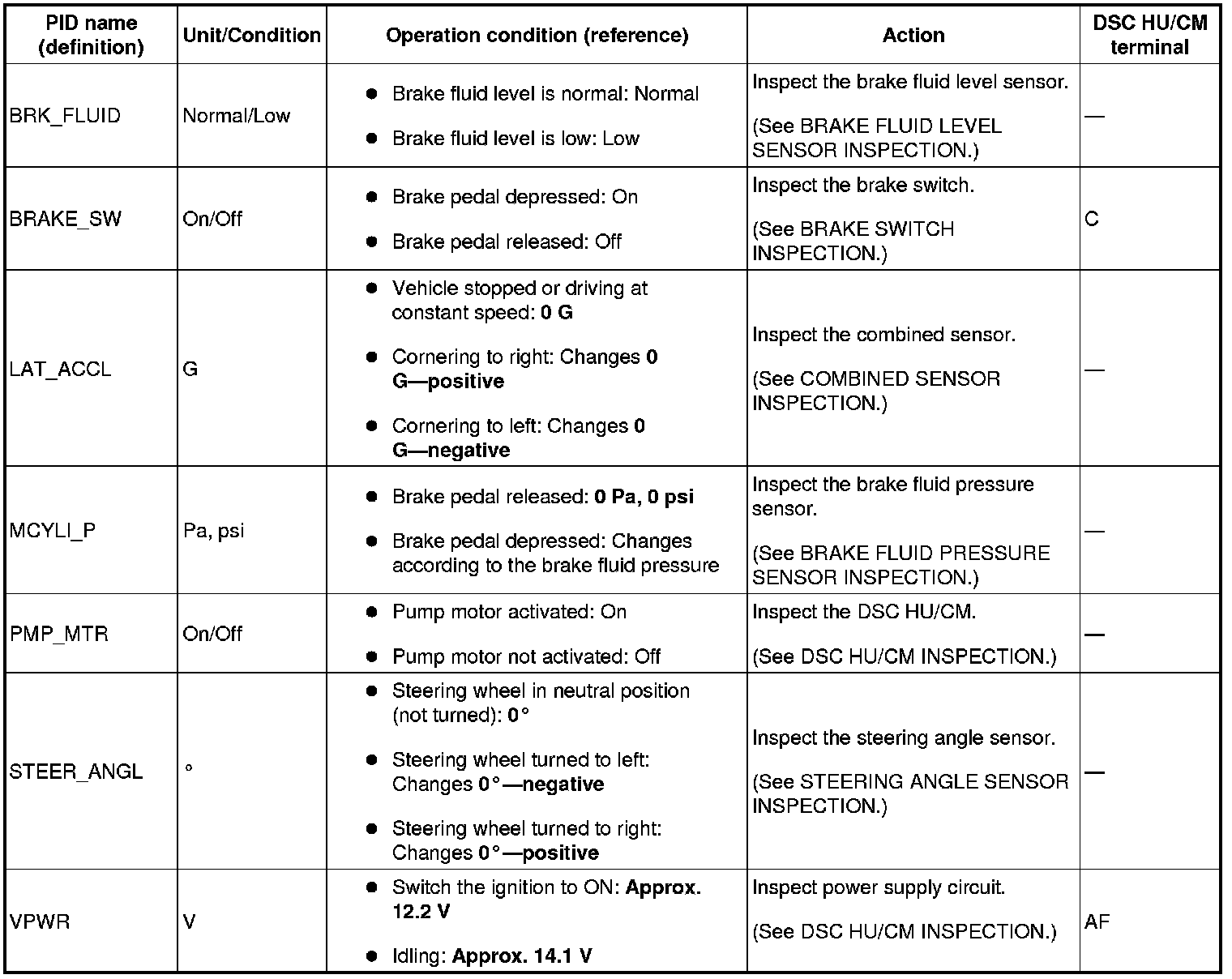

PID/DATA Monitor Table (Part 1):

Factory service manual diagram

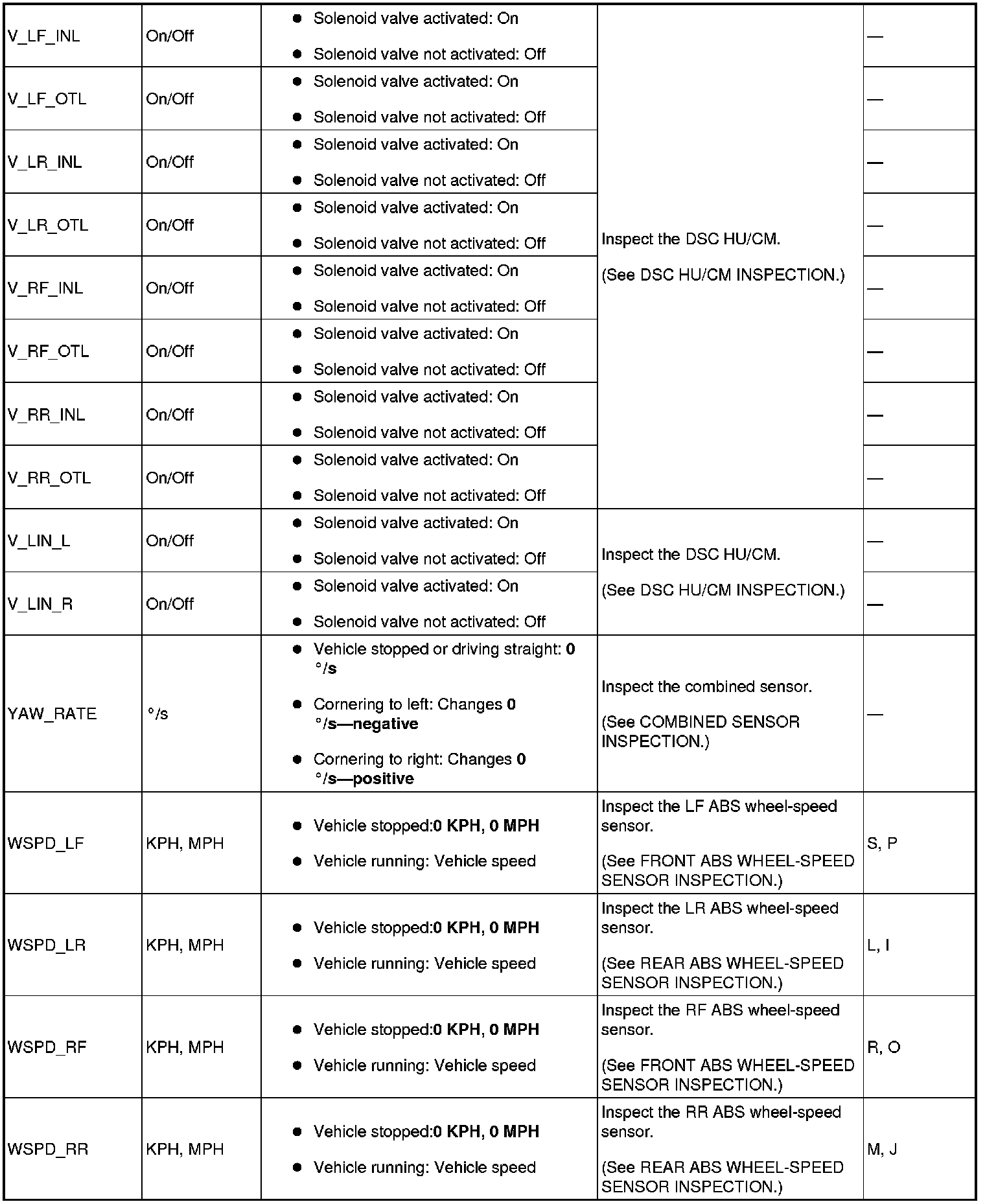

PID/DATA Monitor Table (Part 2):

Factory service manual diagram
