2008 Mazda Tribute s Sport, 4WDFACTORY OEM SERVICE PROCEDURE
Side Air Bag Module: Notes
WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

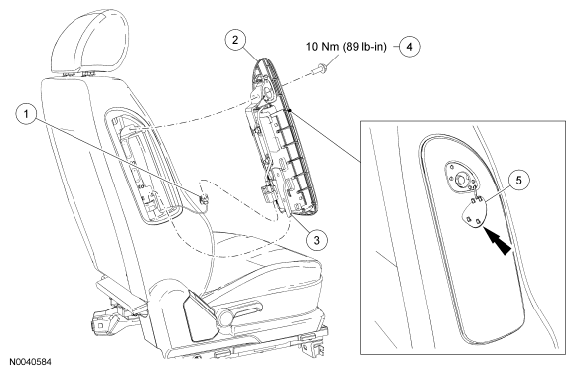

Fig 1: Side Air Bag Module, Electrical Connector, Locator Hook, Bolt And Bolt Cover With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Side air bag module electrical connector (part of 14K155) |
| 2 | 611D10 | Side air bag module |
| 3 | - | Side air bag module locator hook (part of 611D10) |
| 4 | N605892 | Side air bag module bolt |
| 5 | - | Side air bag module bolt cover (part of 611D10) |
