2008 Mazda 6 s Sport, 4D Hatchback, StandardFACTORY OEM SERVICE PROCEDURE
Mode 5 (AIR System Repair Verification Drive Mode)
- Verify that all accessory loads (A/C, headlights, blower fan, rear window defroster) are off.

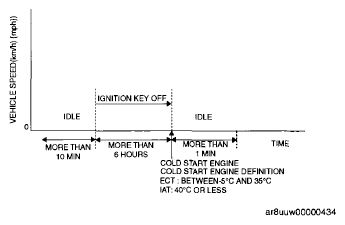

- Drive the vehicle as shown inFig 1. The driving condition before driving at constant speed is not specified.
- Stop the vehicle and access the ON BOARD SYSTEM READINESS to inspect the Drive Mode completion status.
- If completed, RFC changes from No to Yes.
- If not completed, turn the ignition switch off, then go back to Step 2.
- Access the DIAGNOSTIC MONITORING TEST RESULTS to inspect the monitor results.
- If detect values are not within specification, repair has not been completed.
- Verify that no DTCs are available.
