2007 Mazda Mazdaspeed6 L4-2.3L TurboFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Testing and Inspection
ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION(L3 WITH TC]
NOTE: Perform the following inspection only when directed.
Voltage Inspection
1. Turn the ignition switch to the ON position (Engine oft).

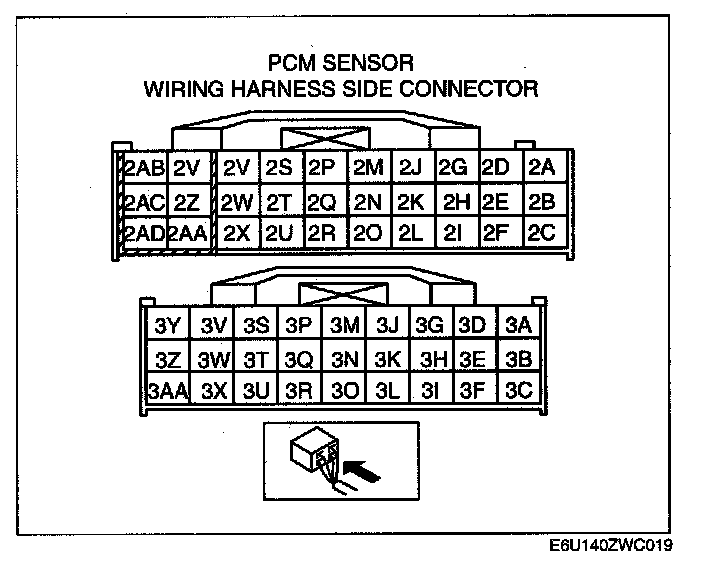

2. Verify that the PCM terminal 2A and 3D change smoothly while throttle valve is gradually opened.
- If as verified, go to next step.
- If not as verified, perform the "Circuit Open/Short Inspection".
- If there is no open or short circuit, replace the throttle body.
3. Verify that the PCM terminal 2A and 3D voltages are as shown in the table.
- If voltage is not as following table, perform the "Circuit Open/Short Inspection".
- If there is no open or short circuit, replace accelerator pedal.
APP sensor output voltage
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
- It there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- APP sensor terminal A and PCM terminal 2K
- APP sensor terminal B and PCM terminal 2H
- APP sensor terminal C and PCM terminal 2A
- APP sensor terminal D and PCM terminal 3G
- APP sensor terminal E and PCM terminal 3A
- APP sensor terminal F and PCM terminal 3D
Short circuit
- It there is continuity, there is a short circuit. Repair or replace the wiring harness.
- APP sensor terminal A and power supply
- APP sensor terminal A and body ground
- APP sensor terminal B and power supply
- APP sensor terminal C and power supply
- APP sensor terminal C and body ground
- APP sensor terminal D and power supply
- APP sensor terminal D and body ground
- APP sensor terminal E and power supply
- APP sensor terminal F and power supply
- APP sensor terminal F and body ground
NOTE: Perform the following inspection only when directed.
Voltage Inspection
1. Turn the ignition switch to the ON position (Engine oft).
2. Verify that the PCM terminal 2A and 3D change smoothly while throttle valve is gradually opened.
- If as verified, go to next step.
- If not as verified, perform the "Circuit Open/Short Inspection".
- If there is no open or short circuit, replace the throttle body.
3. Verify that the PCM terminal 2A and 3D voltages are as shown in the table.
- If voltage is not as following table, perform the "Circuit Open/Short Inspection".
- If there is no open or short circuit, replace accelerator pedal.
App Sensor Output Voltage:
APP sensor output voltage
Circuit Open/Short Inspection
1. Disconnect the PCM connector.
2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
Open circuit
- It there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- APP sensor terminal A and PCM terminal 2K
- APP sensor terminal B and PCM terminal 2H
- APP sensor terminal C and PCM terminal 2A
- APP sensor terminal D and PCM terminal 3G
- APP sensor terminal E and PCM terminal 3A
- APP sensor terminal F and PCM terminal 3D
Short circuit
- It there is continuity, there is a short circuit. Repair or replace the wiring harness.
- APP sensor terminal A and power supply
- APP sensor terminal A and body ground
- APP sensor terminal B and power supply
- APP sensor terminal C and power supply
- APP sensor terminal C and body ground
- APP sensor terminal D and power supply
- APP sensor terminal D and body ground
- APP sensor terminal E and power supply
- APP sensor terminal F and power supply
- APP sensor terminal F and body ground
